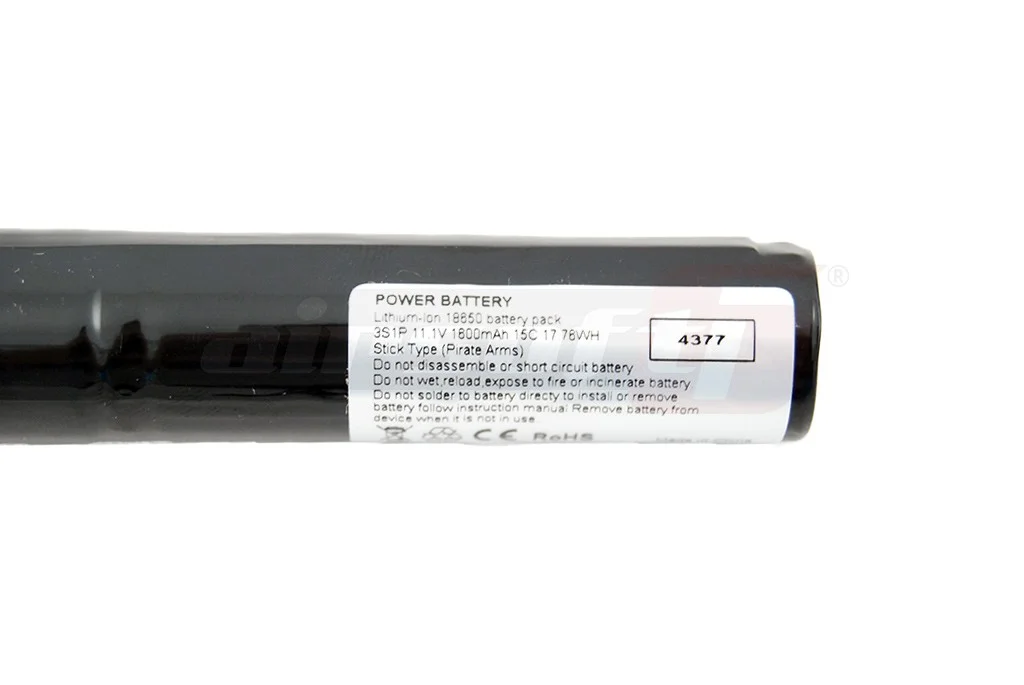

LiPo 11.1V 1600mAh stick battery from Pirate Arms. This LiPo battery can be used with well-optimized replicas where the current demand is not very high.
Equipment Specifications
| Battery Connector | Small Tamiya |
| Magazine Capacity | 1600 mAh |
| Voltage | 11.1 V |
| Battery Shape | Stick |
| Discharge | 15 C |
| Battery Type | Li-Po |
| Width | 18 mm |
| Height | 18 mm |
| Length | 198 mm |
Product Description
This Pirate Arms battery is a LiPo type and consists of 3 cells forming a compact assembly. It has a voltage of 11.1V and a capacity of 1600mAh. The battery technology allows for very small dimensions of the entire assembly, making it possible to install in very limited battery compartments. This battery is intended for platforms such as AK or MP5K, where a stick-type battery is required.
The battery's insulation is well-made, and the wires and connectors are of high quality.
WARNING:
- Lithium Polymer (LiPo) batteries can be extremely dangerous.
- The user must ensure all precautions for: potential fire, bodily injury, and property damage.
- In case of improper use, damage, or manufacturing defect, LiPo batteries can cause explosions, fire, smoke, and poisoning risks.
- By purchasing this type of battery, the user assumes responsibility for any risks associated with LiPo batteries.
- LiPo batteries are not toys and should not be left within reach of children as they can pose a real danger to their health.
- LiPo batteries should not be thrown into fire, placed in an oven, or microwave as they can explode.
- LiPo batteries contain/may emit electrolytes, toxic vapors, and other harmful chemicals. Handle these batteries carefully and avoid, in any form, contact with skin, eyes, or other body parts. In case of contact, rinse thoroughly with water and contact a doctor immediately.
- Do not attempt to charge mechanically or chemically damaged batteries.
Actions Leading to Battery Damage
- Charging LiPo batteries with a charger that lacks balancing and automatic shut-off features.
- Connecting in series or parallel a cell or another battery even if they appear similar.
- Exceeding the maximum and minimum operating voltages.
- A drop or rise in temperature outside the allowed limits.
- Charging current that is too high.
- Short-circuiting the battery terminals.
- Subjecting the battery to mechanical shocks such as dropping, hitting, bending, cutting, twisting, deforming, or puncturing.
- Contact with liquids.
- Improvising an improper charging setup.
- Using inappropriate, improvised charging cables.
General Information
- LiPo batteries are made up of cells.
- The parameters of this type of battery are: Voltage measured in Volts (V), Capacity measured in milliamp hours (mAh), and instant discharge (C)
- Each LiPo battery has a power connector and a charging connector.
- The power connector is used to power the device intended for powering.
- The charging connector is exclusively for charging the battery. (in some cases, charging is done through both the power and charging connectors)
- The battery is charged using the charging connector, and in some advanced chargers, connecting the power connector is also necessary.
- LiPo batteries are charged with special LiPo battery chargers that have the function of balancing the voltage of each cell and automatic shut-off of charging.
- Each LiPo battery has a maximum charging rate of 1.05X of the battery capacity, which must not be exceeded during charging.
- Each cell has a maximum voltage of 4.2V and a minimum voltage of 2.7V.
- During operation or charging, the battery temperature must not drop below 0'C or rise above 50'C.
- For long-term storage of the battery, the battery capacity should be between 15 and 25% of the maximum value.
Airsoft6 cannot guarantee that you have used correct operating methods and have adhered to the charging, discharging, or storage conditions of LiPo batteries. For this reason, we reserve the right to refuse replacement, as a warranty, for improperly used batteries (which violate the above instructions and warnings) and are not responsible for material, moral damages, or loss of life.
