G&P M4 Troy Battle

Overview

Over the years, the classic M4A1 has undergone and will continue to undergo modifications and improvements in accordance with the latest manufacturing requirements and technological capabilities. The enhanced design offers better maneuverability and functionality, while the materials used are increasingly lighter yet more durable than ever. All of this is aimed at optimizing the user's effort, thereby improving their overall performance.

Exterior of the Replica

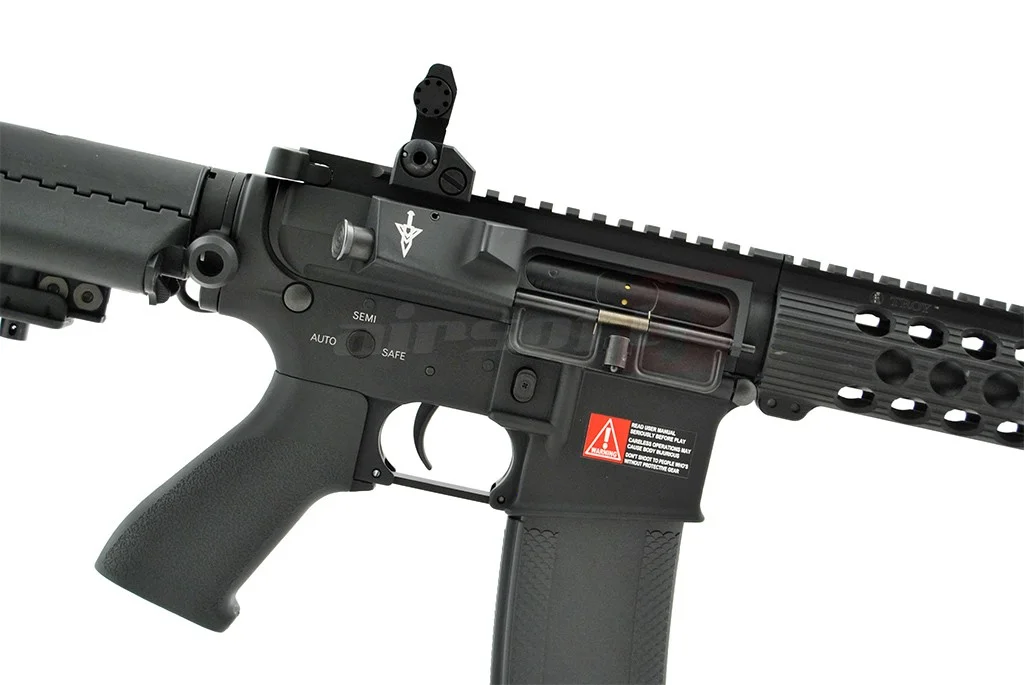

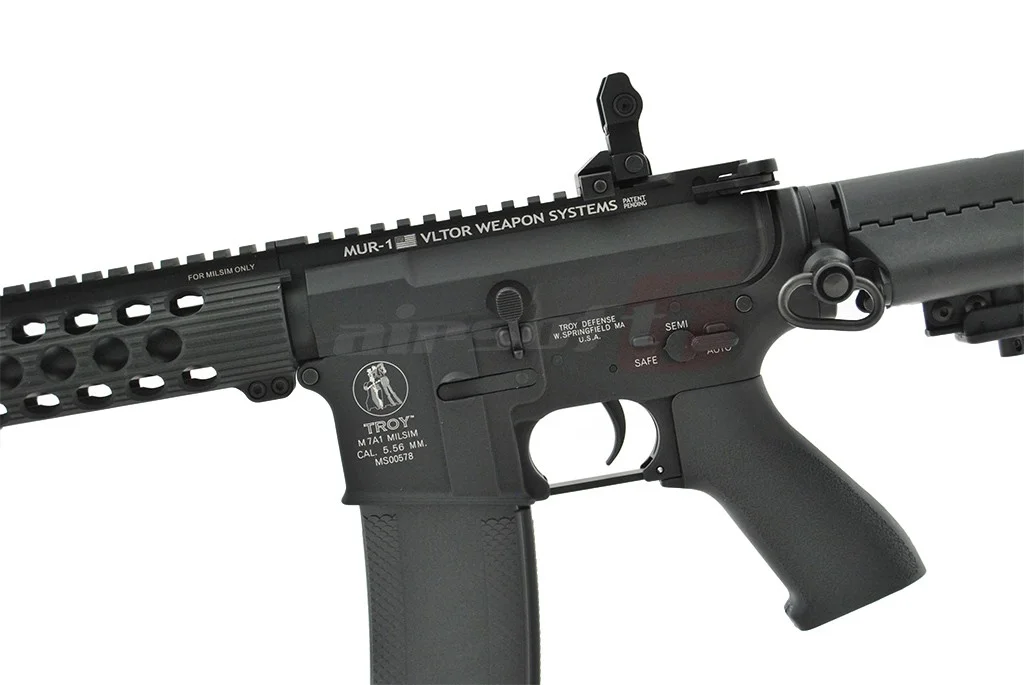

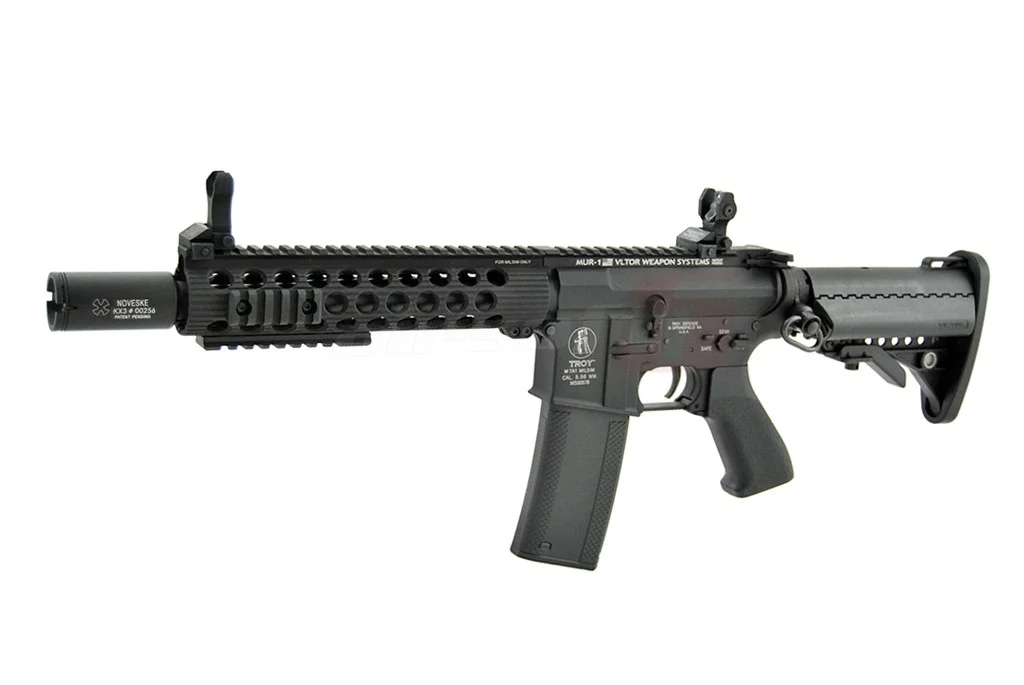

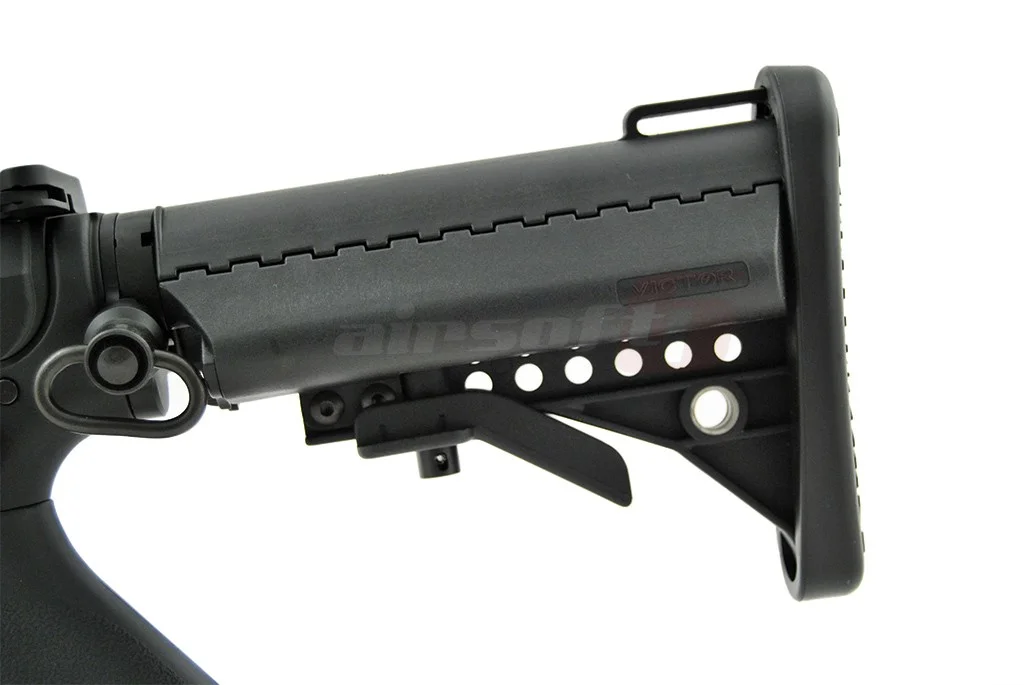

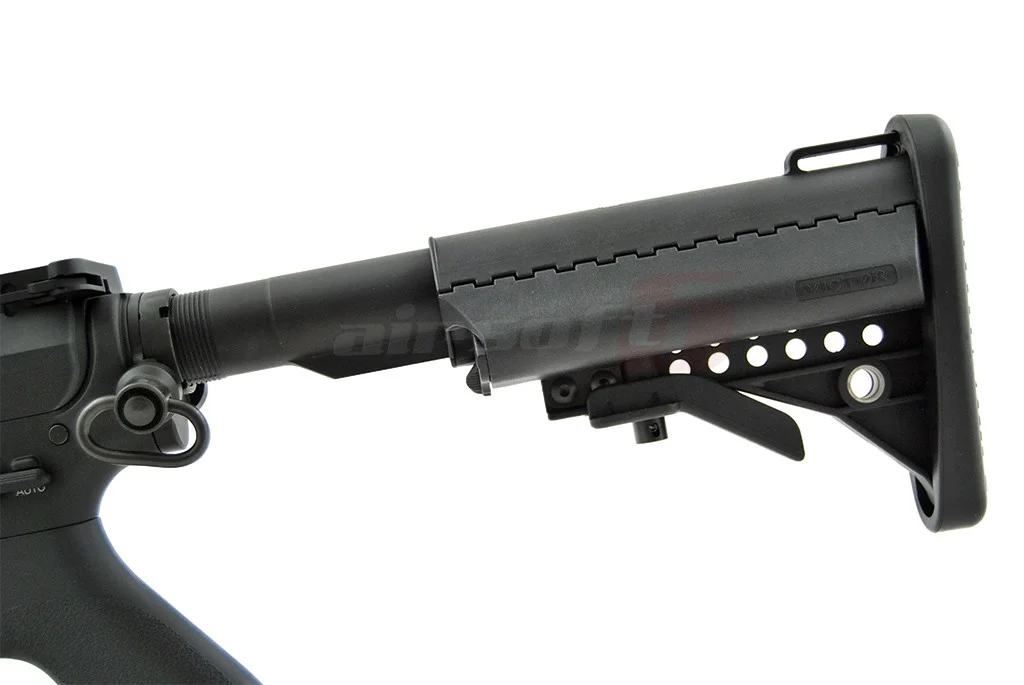

The airsoft replica is equipped with a front rail system copied from the latest generation models of Troy Industries, made from modern alloys that are lightweight yet very durable. It is constructed entirely from quality aluminum, thus reducing the overall weight of the airsoft replica. The paint used is specially formulated to resist wear. The stock is retractable with 5 adjustable positions made from ABS plastic. The body and stock of the airsoft replica are modeled after MUR designs, providing a distinctive look compared to the classic M4.

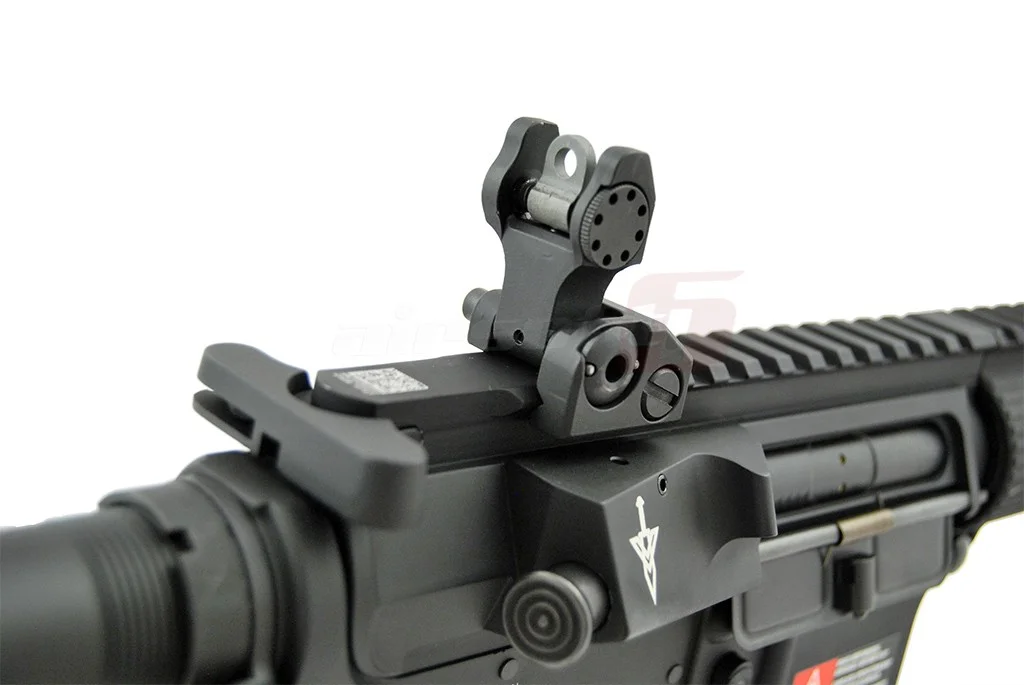

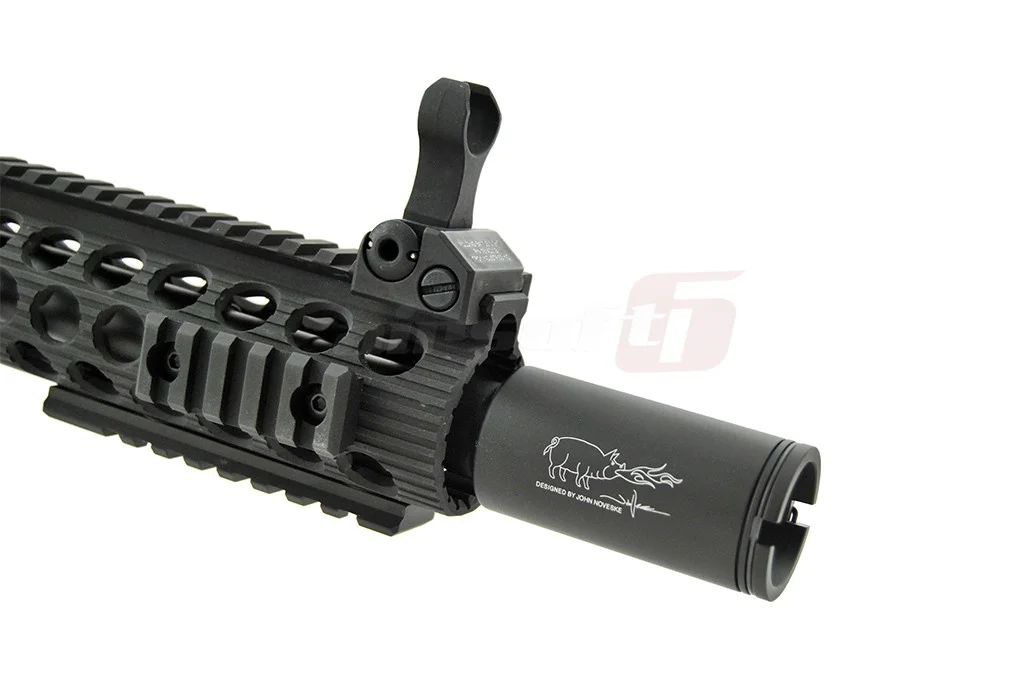

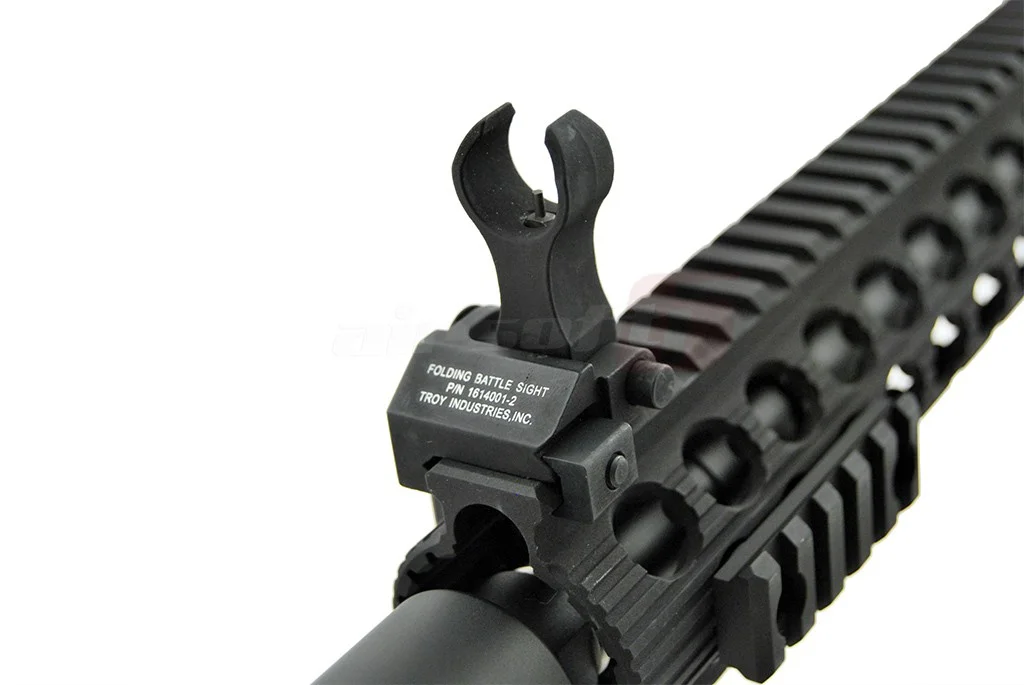

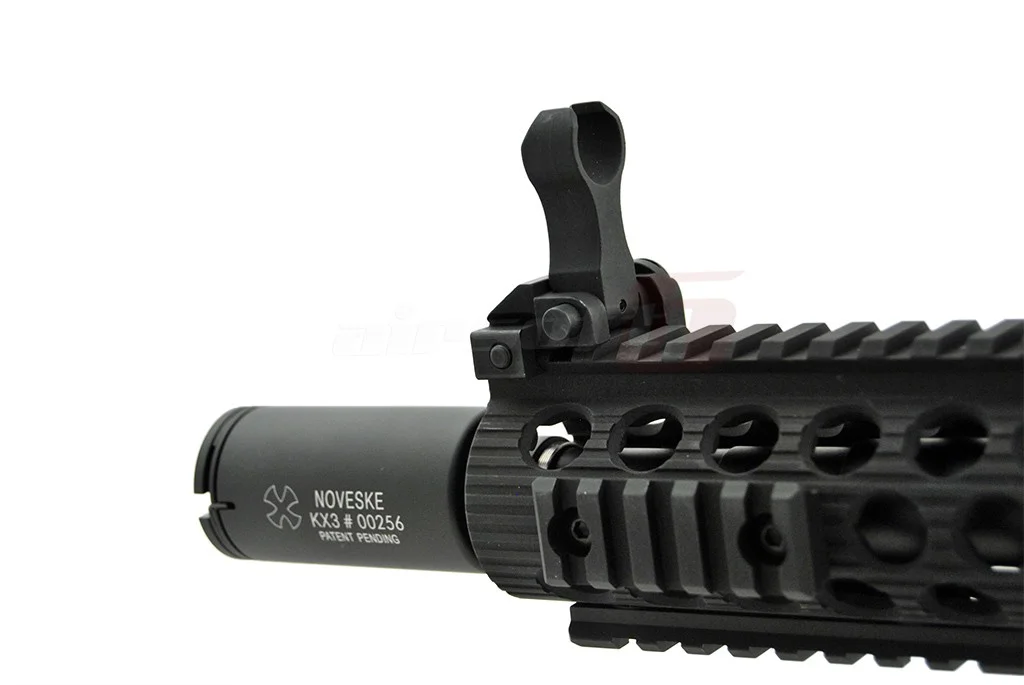

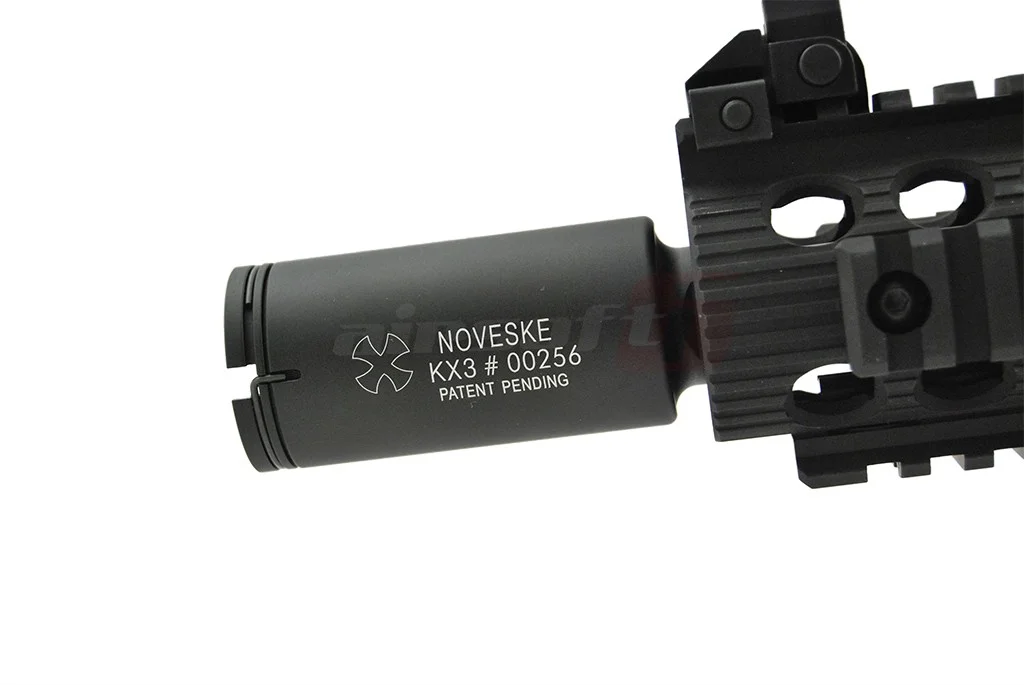

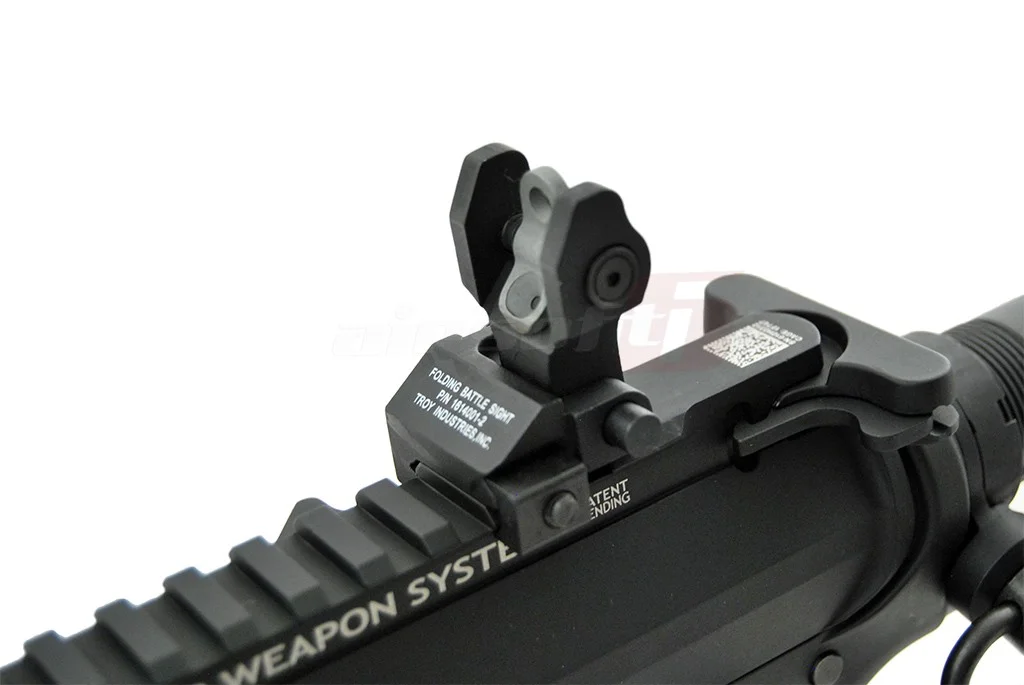

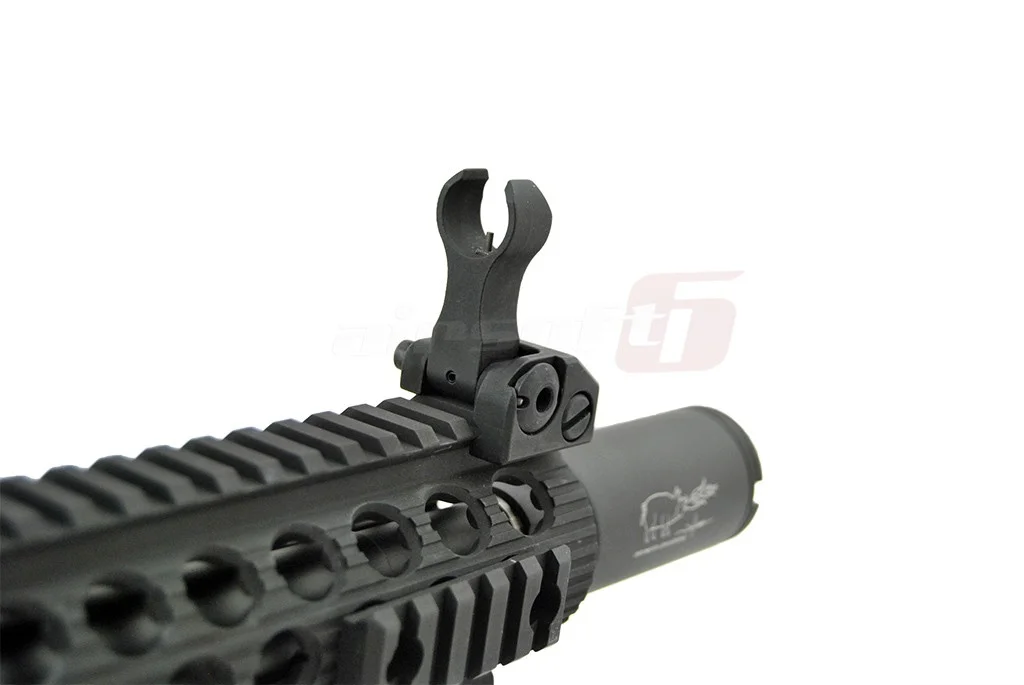

The components of the airsoft replica are manufactured with great care, ensuring precise fitting that eliminates play between them. At the front, there is a system designed to enhance the sound power of the airsoft replica when firing BBs. Below this system, there is a standard thread that allows for the attachment of a classic flash hider or other devices. The dust cover is designed to remain open for added authenticity. The sighting system consists of two foldable metal sights equipped with a locking mechanism.

At the rear of the airsoft replica, there are 4 attachment points for a quick-detach support system. 2 points are above the grip and 2 at the back of the stock. A QD ring is included in the package.

Interior of the Replica

The gearbox of the airsoft replica is version 2 equipped with 8 mm steel bearings of high quality. The interior of the gearbox is meticulously processed; the gears are made from a hard, wear-resistant metal, and the shimming is very well executed. The cylinder head is made of aluminum, as is the nozzle, which is also equipped with a sealing O-ring. The cylinder is specifically ported for G&P, meaning it is bored out towards the opposite end of the exhaust. The fired BBs have a velocity of approximately 105-110 m/s measured with 0.20g BBs.

The motor is a high-speed G&P M120 model which, together with a 9.6V 2000 mAh battery, can fire up to 21-22 BBs per second.

The hop-up chamber is metal, and the inner barrel has a diameter of 6.08 mm. The accuracy of the airsoft replica is good, and the hop-up effect is consistent.

Power Supply

The airsoft replica is equipped with a large Deans connector, and it supports 7.4V LiPo or 8.4V and 9.6V NiMh batteries. It is recommended to use a LiPo battery with a voltage of 7.4V 1000-1200 mAh stick type, to allow for its installation inside the buffer tube, or a 9.6V 1600 mAh crane battery which can be mounted on the sides of the stock with some care. It is not recommended to use a battery larger than 9.6V as it may damage the airsoft replica.
