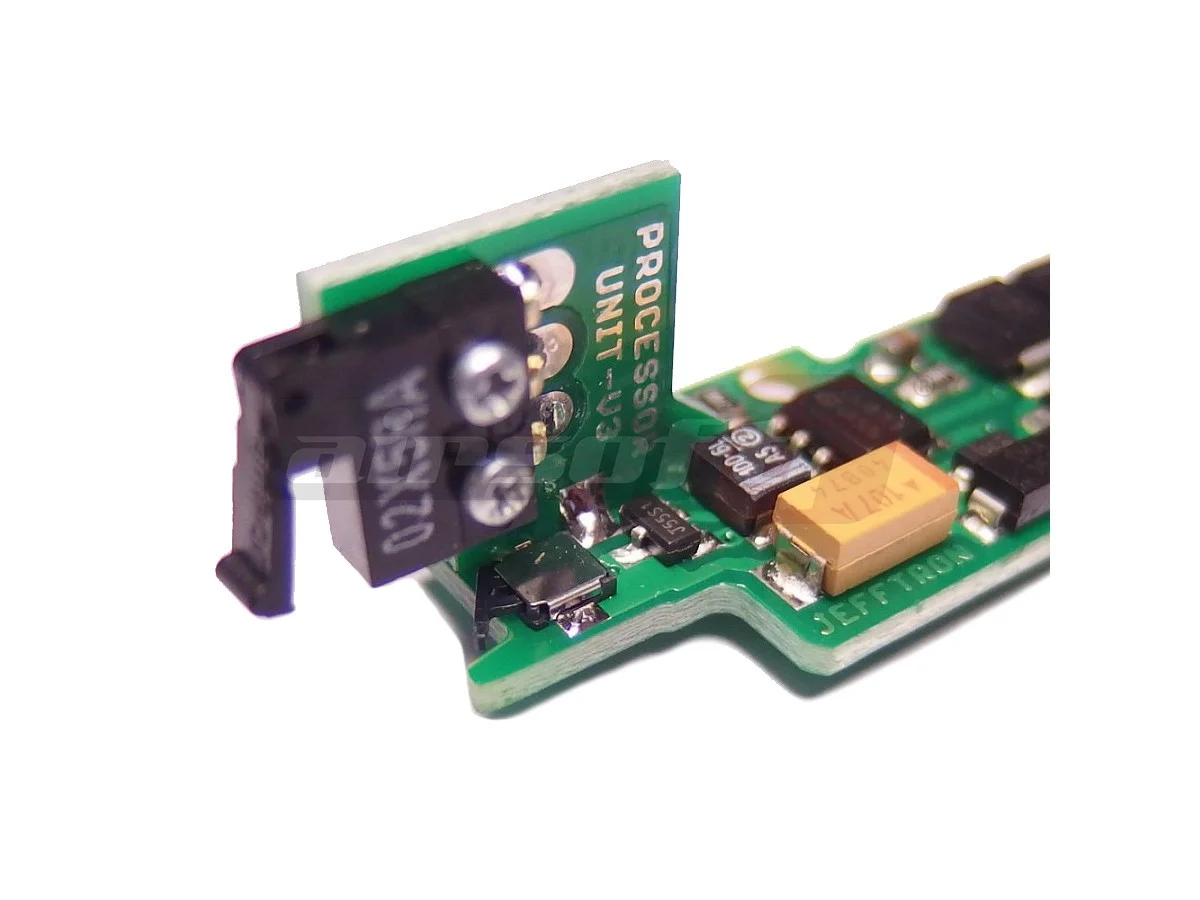

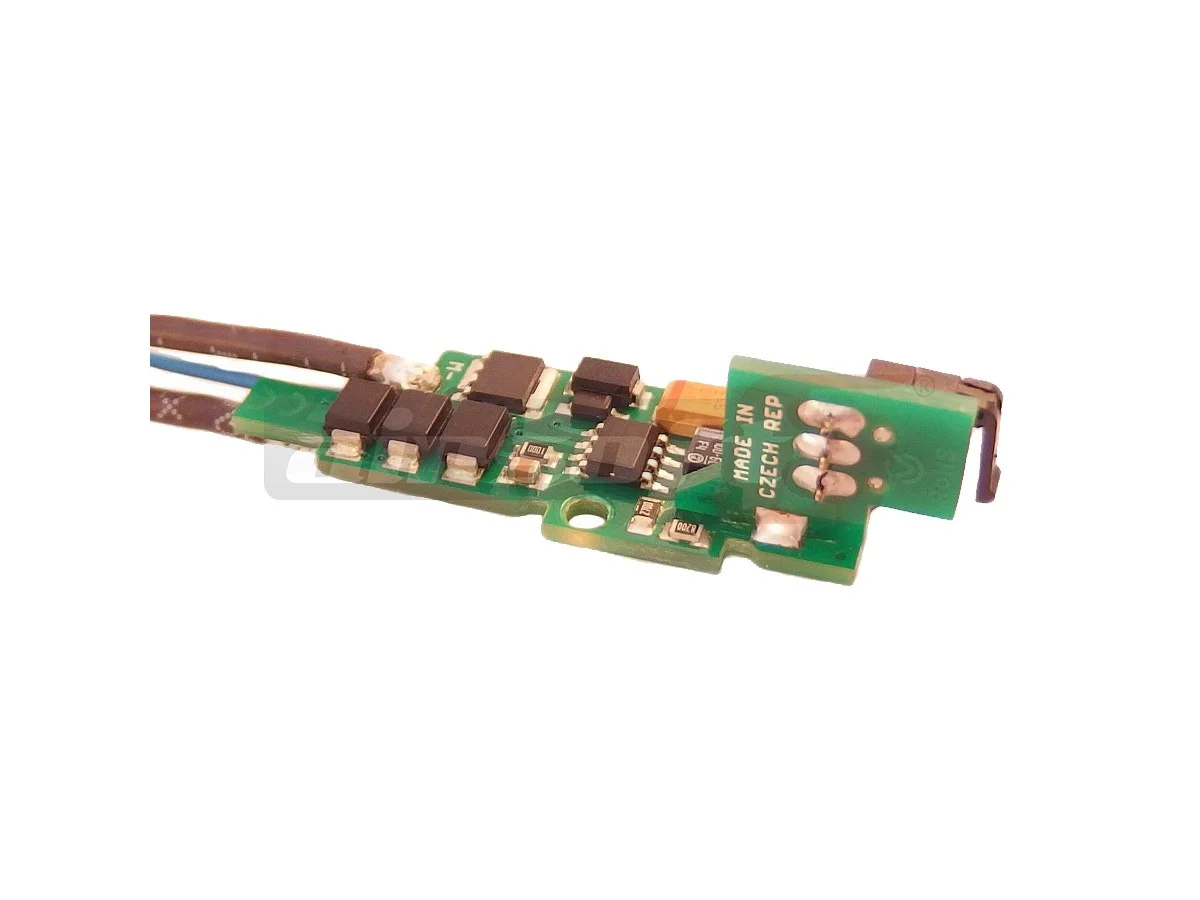

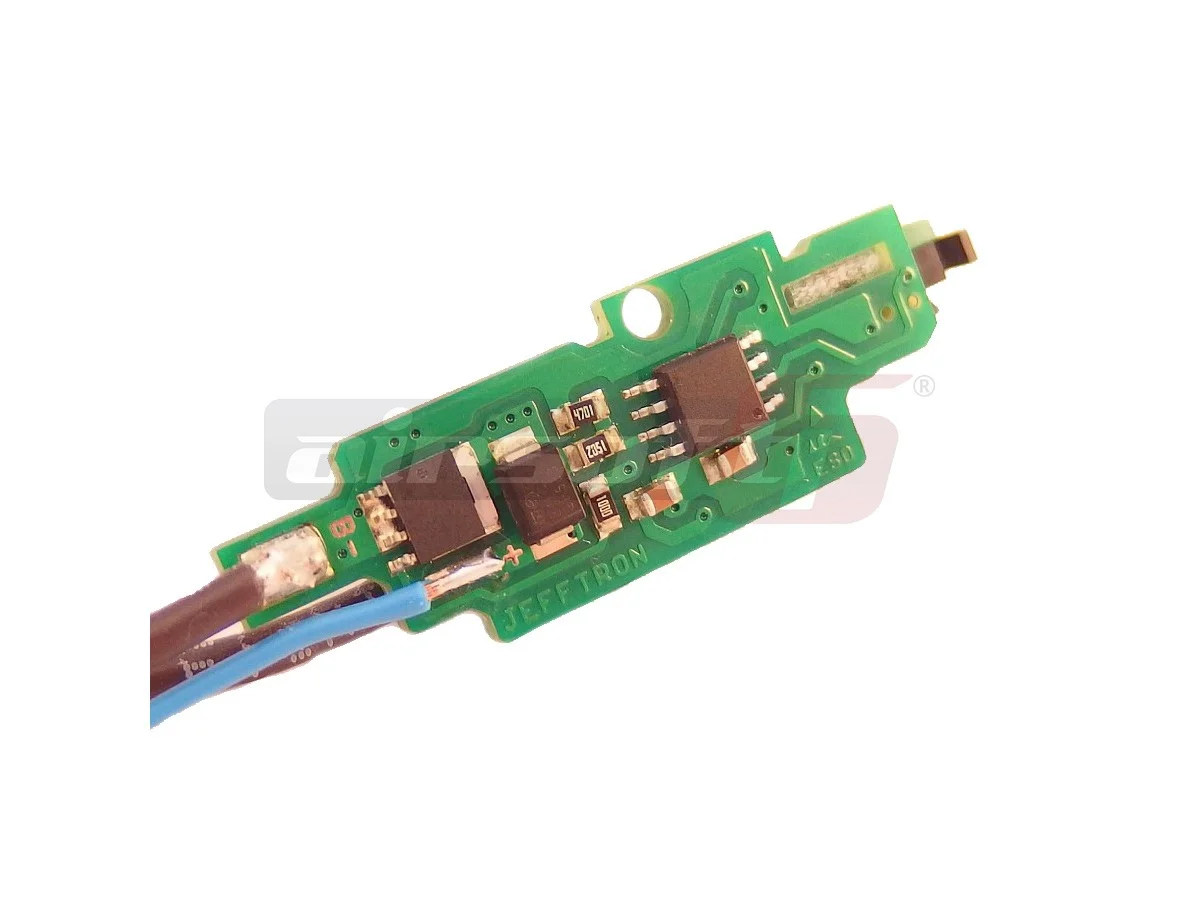

JeffTron Processor Unit V3 Mosfet with Wiring

Jefftron is a Czech company that manufactures electronic circuits to enhance the performance of electric airsoft replicas. Jefftron is renowned among players and users of airsoft replicas for its products that offer excellent value for money. The performance provided by these products is commendable.

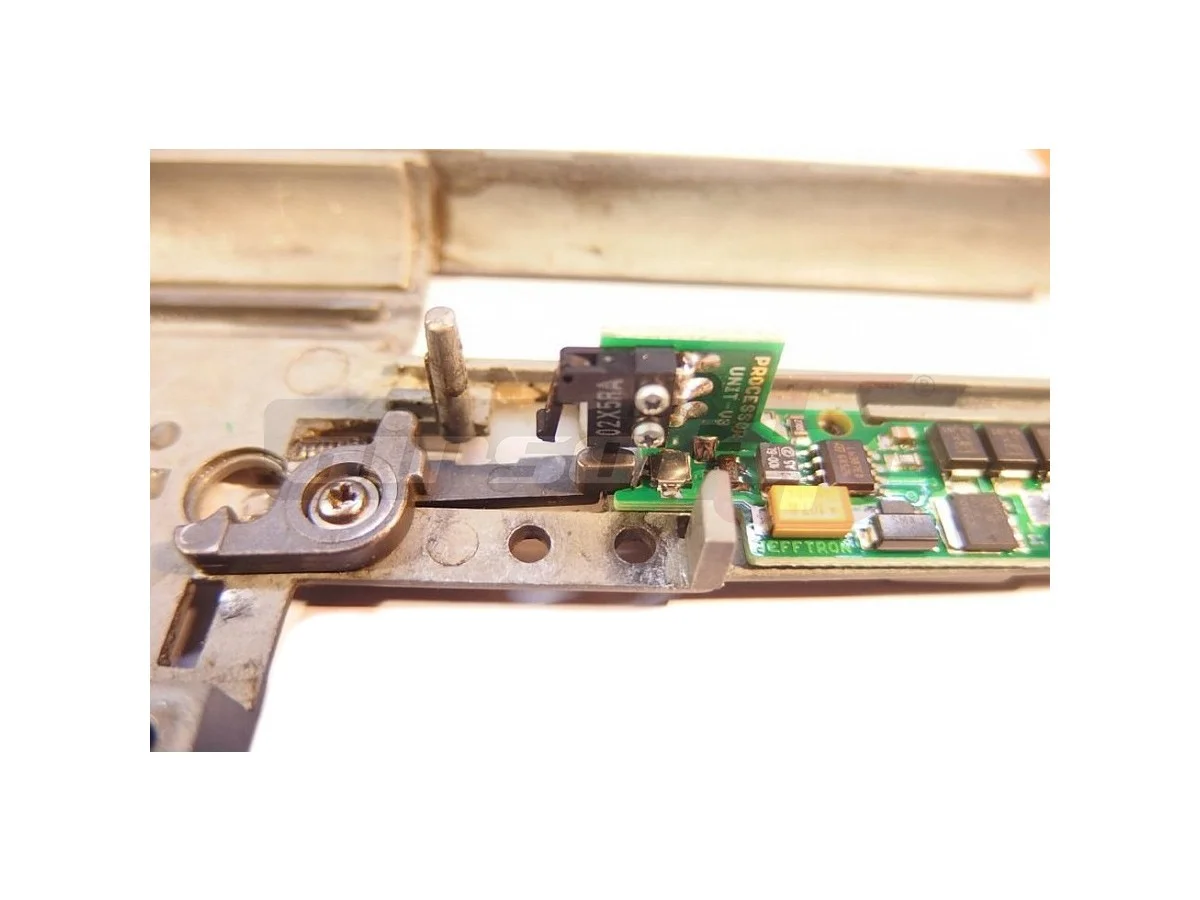

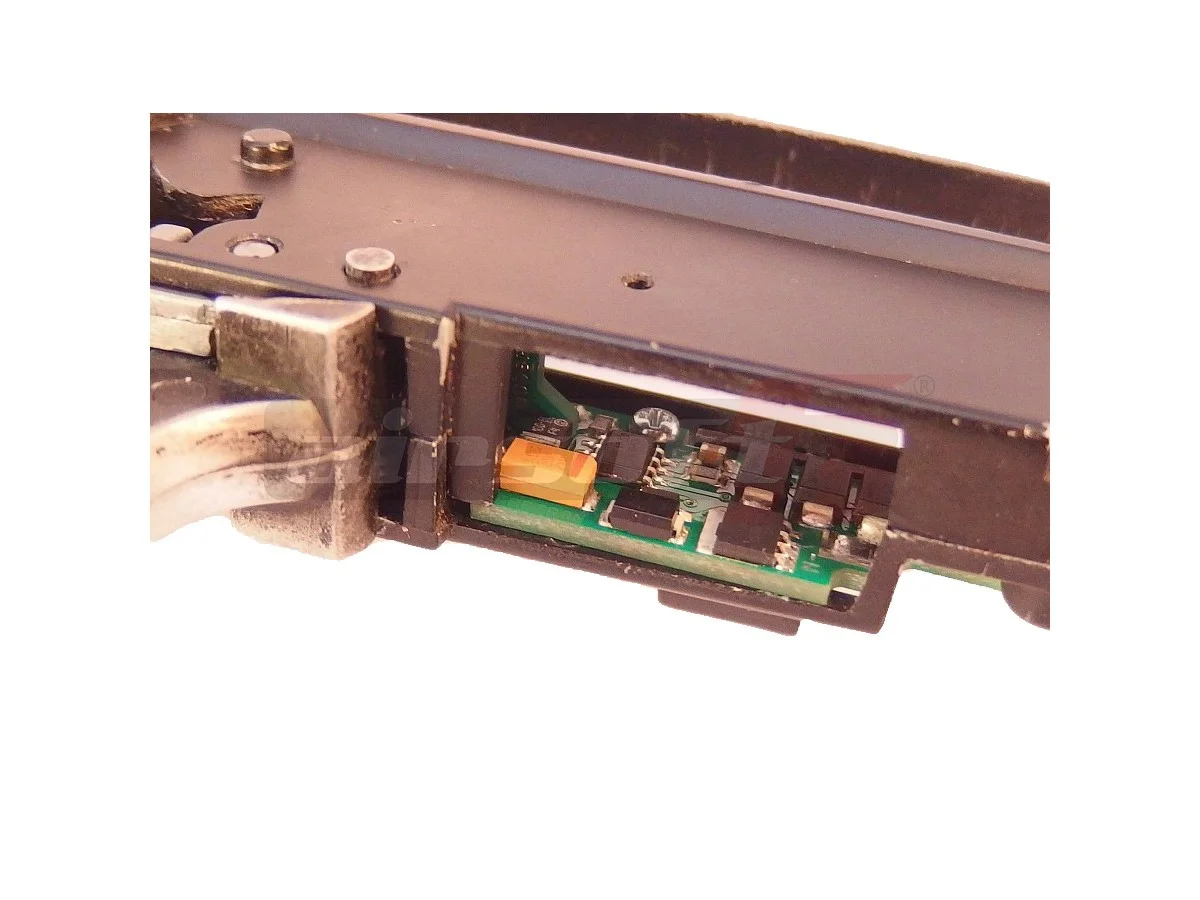

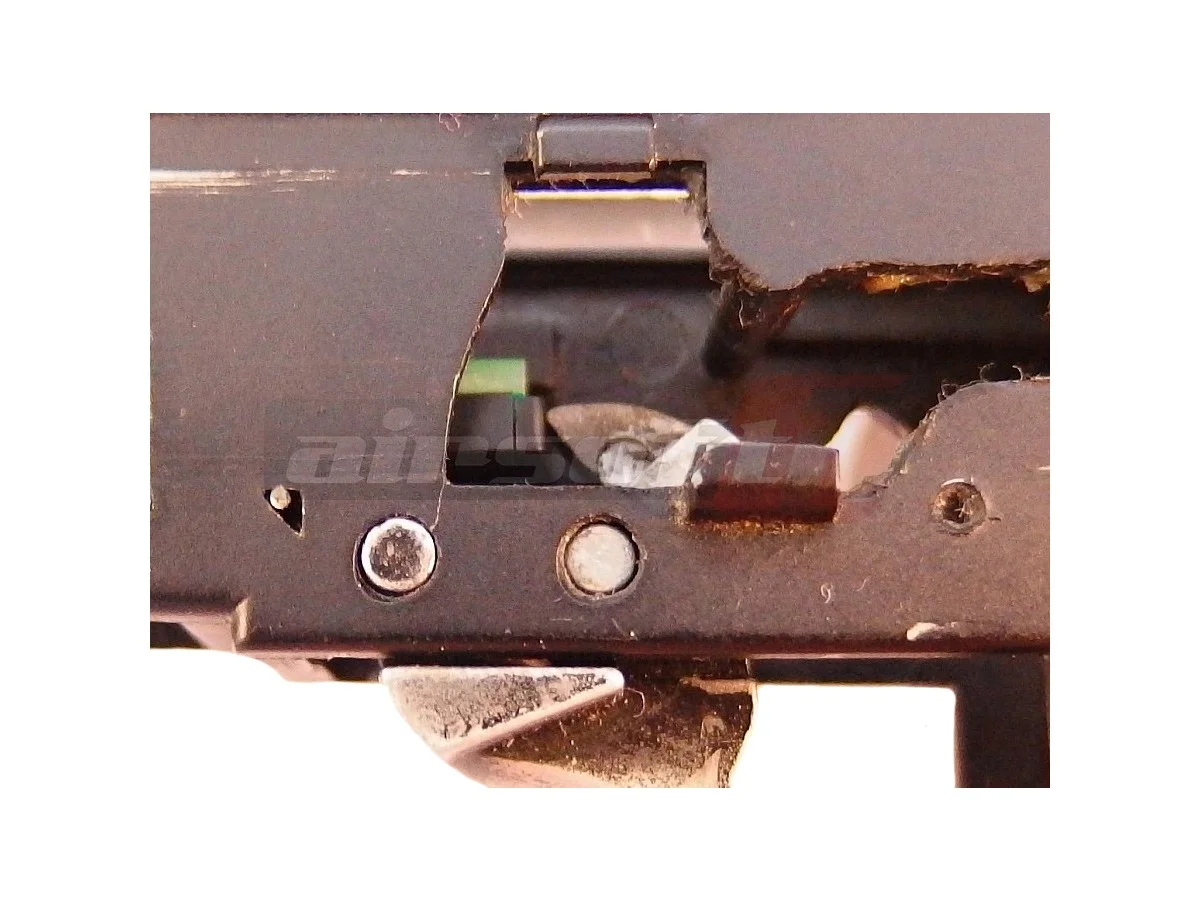

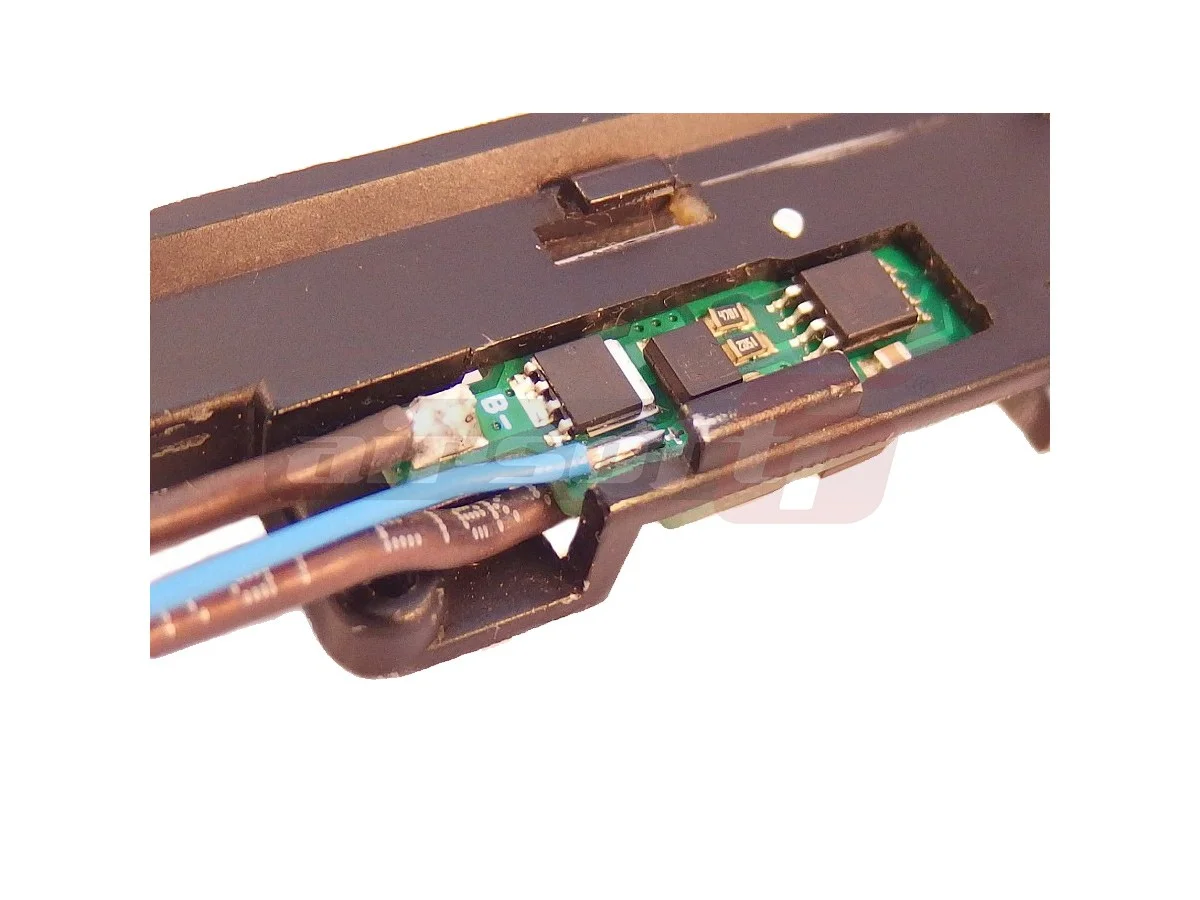

The mosfet in question is the Processor Unit V3 model. This is the most refined processor-equipped option offered by Jefftron. This version of the mosfet allows for direct installation inside the gearbox, replacing the mechanical contact of the gearbox. Thus, all firing mode options are replaced with sensors and micro-switches capable of providing significantly superior feedback compared to mechanical commands. The trigger response is vastly improved, and the selection of firing modes is greatly enhanced. Its functions are as follows:

Firing Modes

• Semi + Auto
• Semi + Semi/Burst/Auto
• Semi + Semi
• Semi + Semi/Burst
• Semi + Semi (with delay between shots, the motor will vibrate when the next shot is ready)
• Burst + Burst/Auto
• Semi/Burst + Burst/Auto

Functions

• Active braking with variable power (can be turned off)
• Pre-cocking
• Variable rate of fire
• Rapid fire when variable rate of fire is active
• Low battery warning for LiPo, LiFe, LiIon

Programming this mosfet is done strictly from the trigger. There is no need to disassemble it or connect other devices for programming.

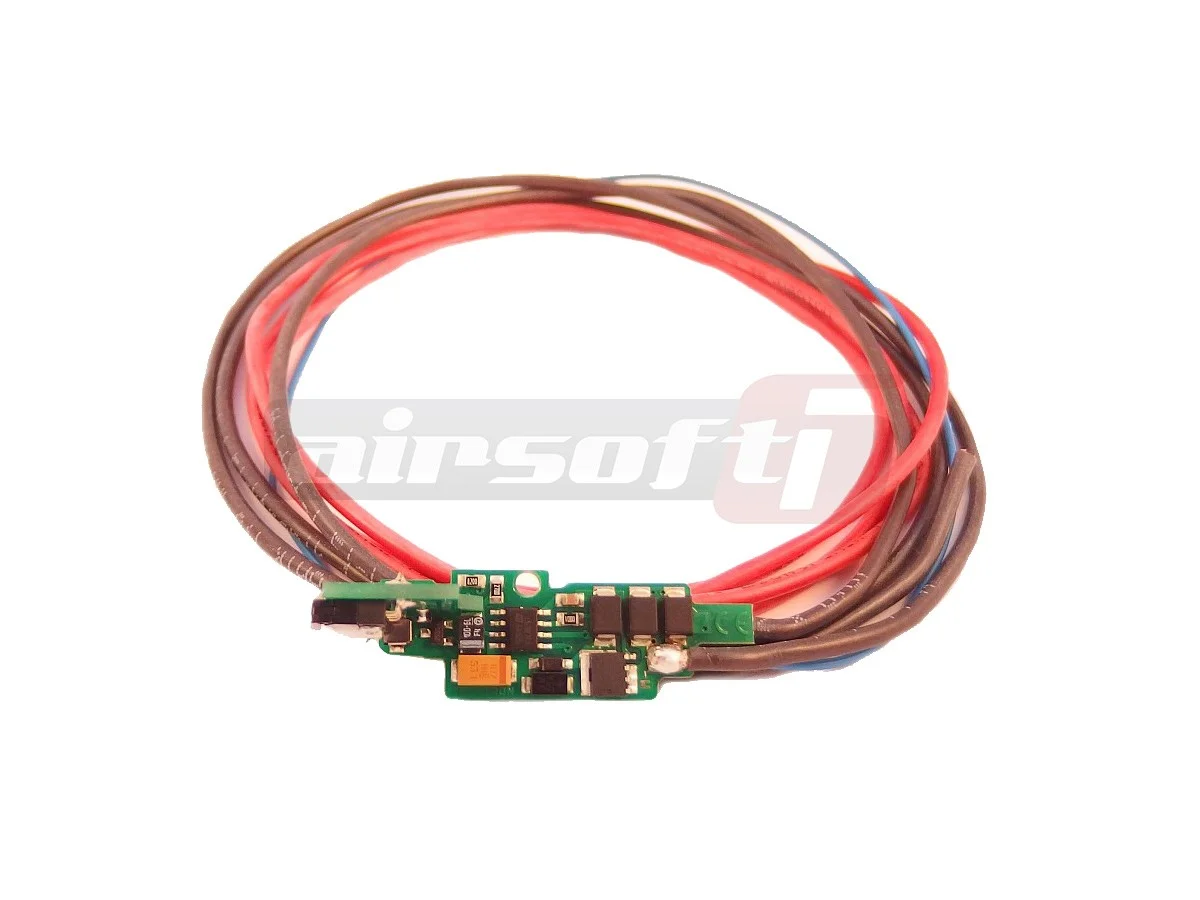

This mosfet can be powered up to 14V DC and can be installed with springs up to 180 m/s. Rates of fire up to 25 bps. This device consumes 4.5 mA when not in use but connected to a battery. We recommend disconnecting the battery after use as it may become damaged. The mosfet is delivered with the wiring installed. To properly utilize all the functions of this mosfet, we recommend using it with a high torque motor. After connecting the battery and powering it on, a few semi-automatic shots are required for the device to correctly set all parameters.

WARNING:

The installation of this mosfet must be carried out by qualified personnel as there is a risk of damaging it or the components of the replica. Incorrect powering of the device will result in its burning out. Airsoft6 provides warranty service only for devices installed in its own service!
