Jefftron Leviathan EVO3 mosfet
Product code: A1874
If you are looking for the performance of your Scorpion EVO3 A1, we recommend the Jefftron Leviathan mosfet, specially designed for this platform. In addition to the multitude of options this mosfet offers, such as rate of fire control, precocking, active-breaking, and a full range of settings, the mosfet allows you to modify these settings wirelessly, using your mobile phone or tablet even during use. To make everything even simpler, the anti-reverse mod kit is included in the package.
Product Description
Jefftron is a Czech company that manufactures electronic circuits to enhance the performance of electric airsoft replicas. Jefftron is renowned among players and users of airsoft replicas for its products with an excellent quality-price ratio. The performance offered by these products is commendable.

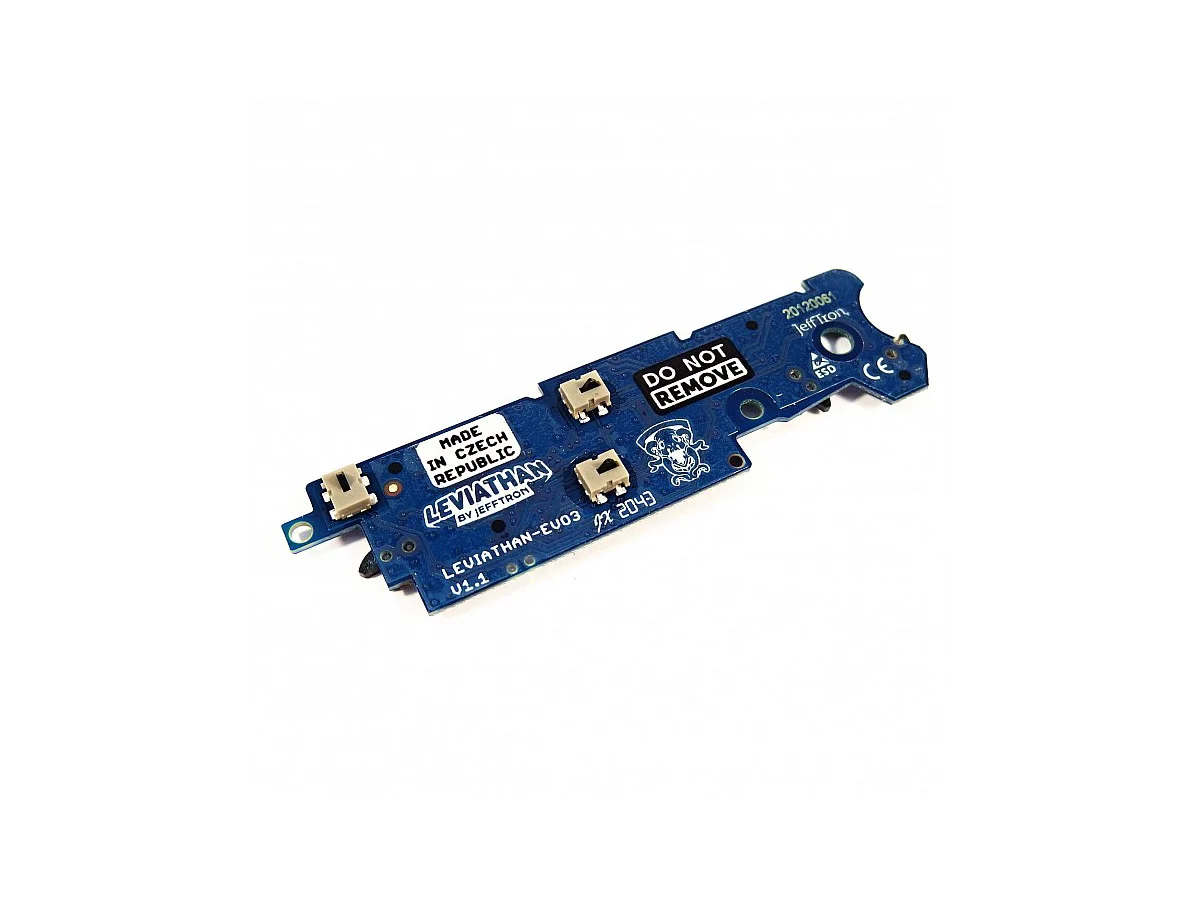

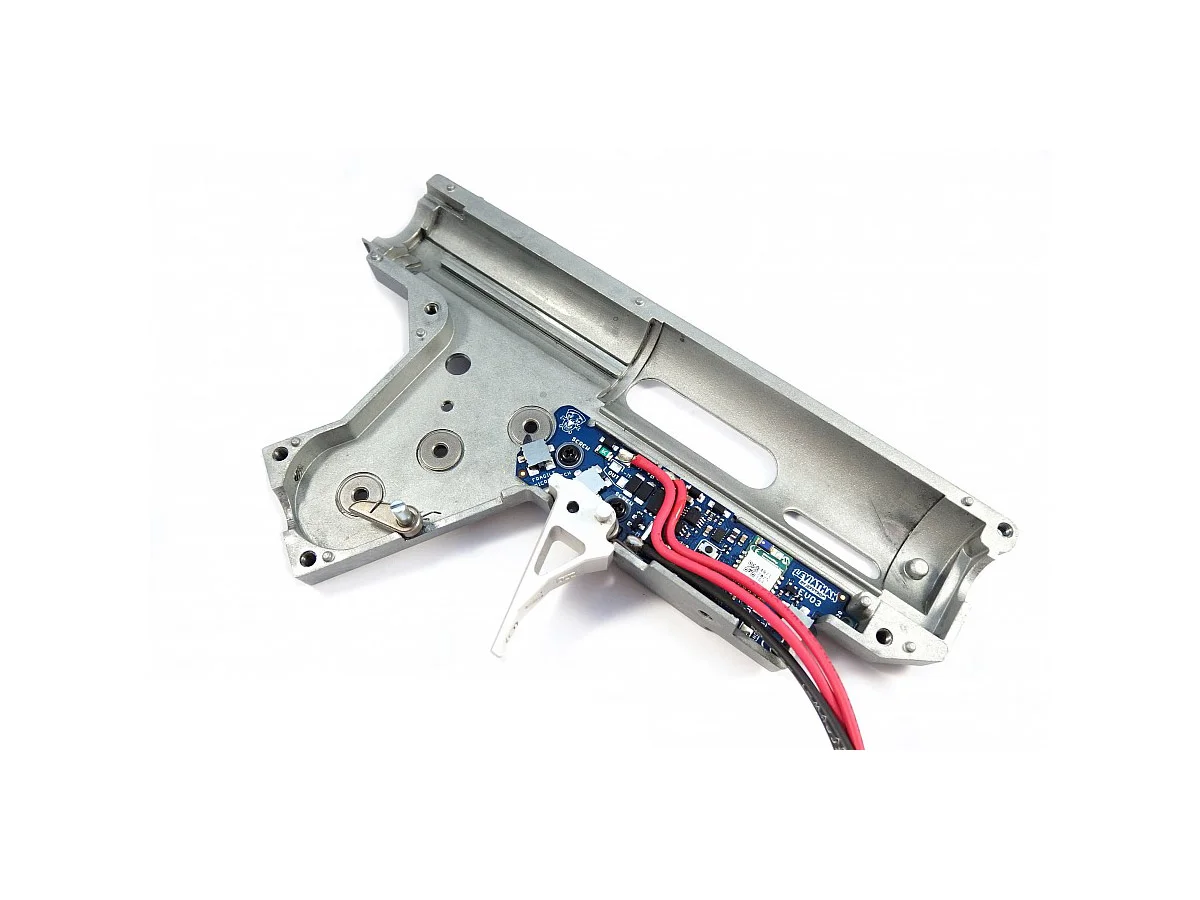

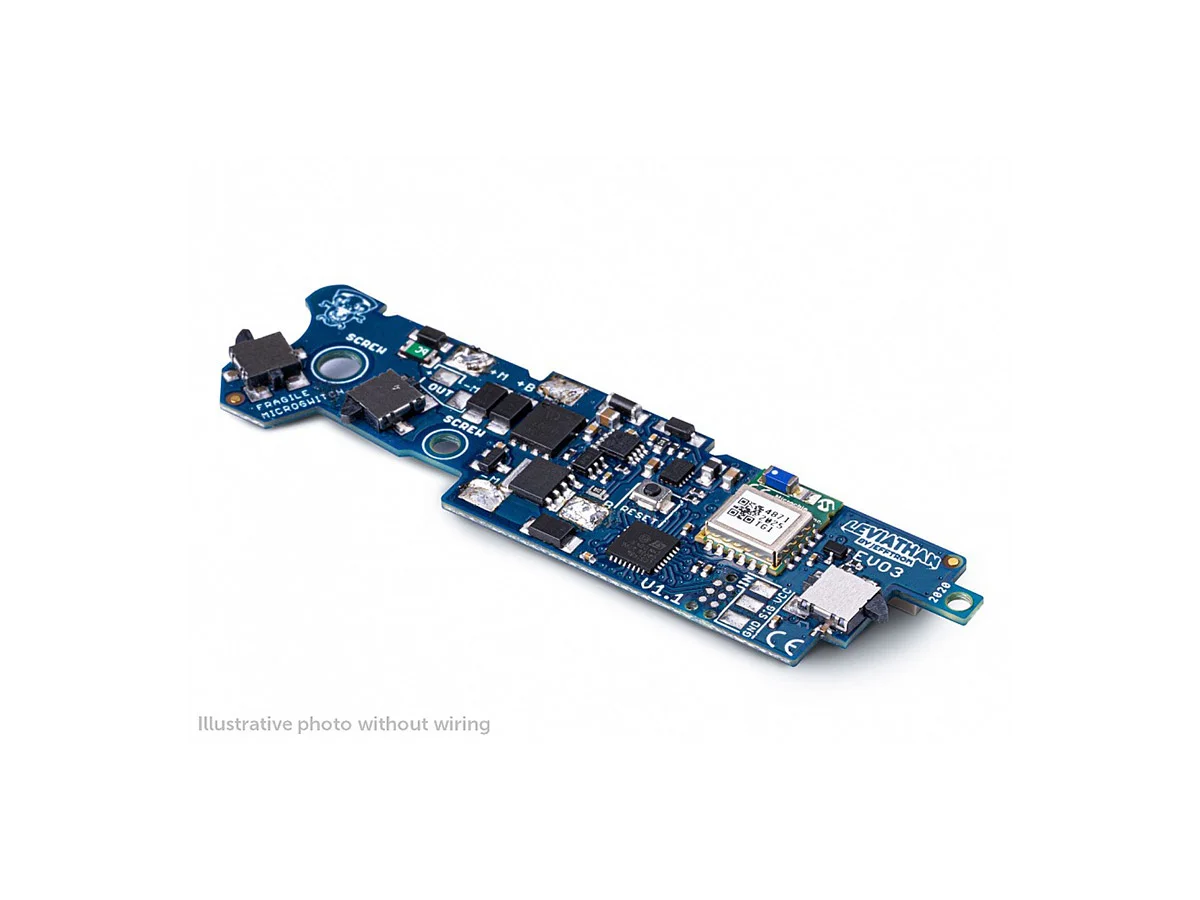

This mosfet is the Leviathan model, specifically designed for the ASG Scorpion EVO3 A1 platform. This version of the mosfet allows for direct installation inside the gearbox, replacing the factory classic mosfet. Once installed, you will have all the original functions of the replica plus a plethora of additional options. The package also includes the anti-reverse kit, which will allow you to fully utilize the Leviathan. For the installation of this kit, you will need to modify the gearbox casing.
Programming this mosfet is a true technological spectacle. Using wireless technology, you can connect the mosfet directly with your mobile phone or tablet and modify all available settings and options in real-time.
Features:
- New firing modes for both short and long trigger pulls
- Adjustable burst between 2 and 20 shots
- Rate of fire can be reduced from 100% to 40%
- The package includes the ARL (anti-reverse lever) set
- Active precocking, but requires ARL installation
- Active bolt catch like the original mosfet
- Audible warning for empty magazine
- Ability to limit time between shots from 0.1 to 4 seconds
- Electronic safety with adjustable sensitivity
- Audible warning for low battery voltage (2S-4S LiPo and 3S-4S LiFe)
- Real-time statistics for gearbox gear positions, current consumption, rate of fire, temperature
- Real-time voltmeter for the battery
- Ability to save multiple user profiles with different settings
- 3 distinct BB counters to know how many BBs have been fired
- Error Log to check operational errors
- Ability to limit wireless access from the trigger for safety reasons
- The mosfet monitors real-time current consumption and temperature to prevent potential failures
- Audible signals are generated by the motor, making them audible and felt
- Settings are saved immediately after modification and are not lost after disconnection
- Can be used with brushless motors (active break off, rate of fire 100%)
Shooting modes:
- Safe: nothing is activated
- Semi: one shot is fired with each trigger pull
- Semi/BurstX: short pull fires semi, long pull fires burst
- Binar: one shot is fired on trigger pull and another on release
- BurstX: fires burst with each trigger pull
- BurstX/BurstY: short pull fires one type of burst, long pull fires another type
- BurstX/Full: short pull fires burst, long pull fires auto
- Full: fires continuously as long as the trigger is held
The package contains:
- Mosfet unit

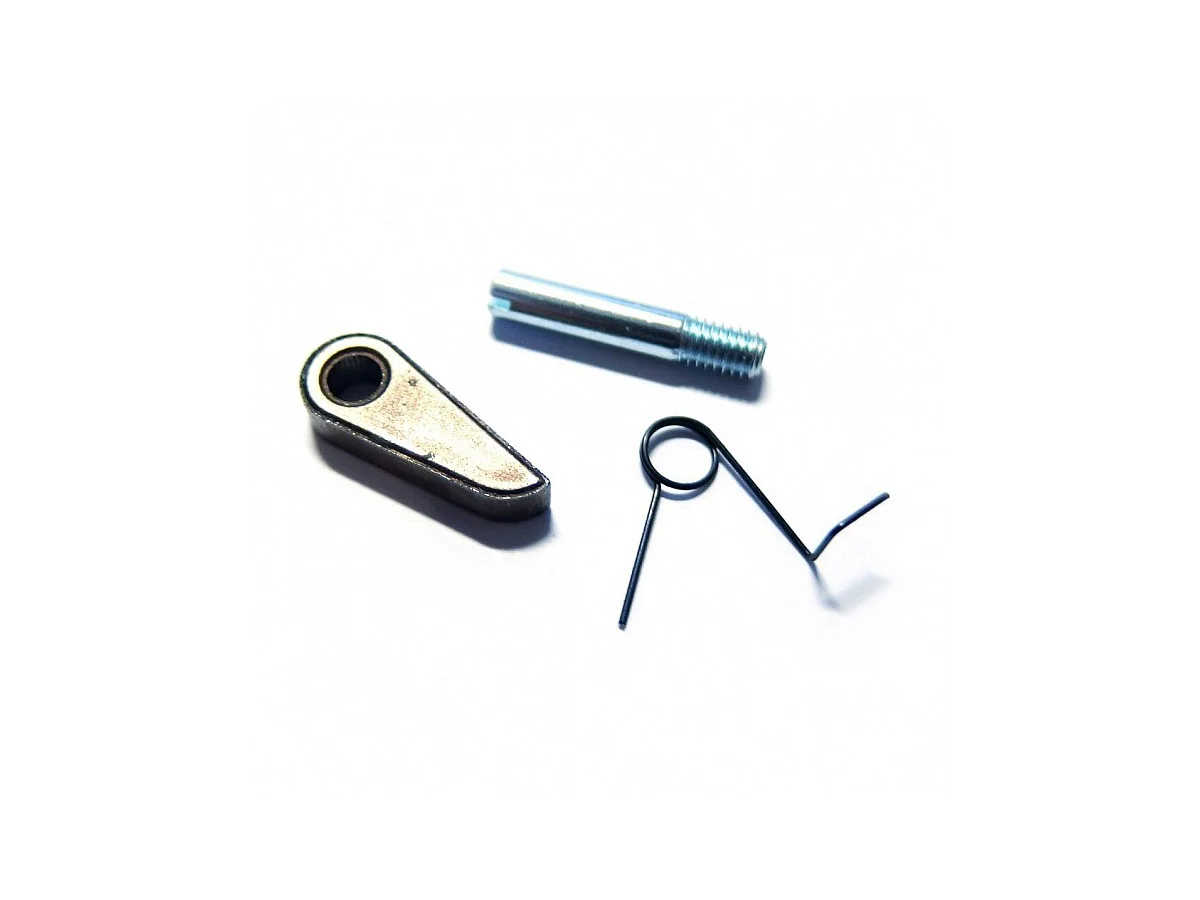

- ARL set, anti-reverse latch mod (lever, spring, special screw)
- Plastic washer screws
- Leviathan sticker
- Foam pieces for securing the mosfet
- Installation manual in English
WARNING:
The warranty is strictly provided for units installed in our service. The installation of this mosfet must be performed by qualified or experienced personnel. Installing this mosfet does not require modification of the mechanism casing, but the installation of the anti-reverse does require modification of the mechanism casing.
