ICS M4 CQB RIS
Product code: A7213
The M4 CQB RIS is a wonderful replica that offers a range of features rarely found in airsoft replicas. The ability to disassemble the replica in a manner similar to a real firearm and the option to replace the air group without touching the gears. When the replica is not in use, the spring can be decompressed by pressing the bolt release button, extending the lifespan of the spring. Let's not forget the front rail system that allows for good accessorizing and the compatibility of internal components with the vast majority of upgrade parts available on the market.
Equipment Specifications
| Gearbox Version | Version 2 Custom |
| Firing Mode | Semi/Auto |
| Hop Up | Adjustable |
| Battery Connector | Special ICS |
| Speed | 100 - 105 m/s |
| Recommended Battery | 9.6 V Ni-MH Mini Crane |
| Inner Barrel Diameter | 6.08 mm |
| Material | Aluminum, Metal, Aluminum, ABS |
| Body Platform | M4 |
| Inner Barrel Length | 265 mm |
| Length | 720 mm / 810 mm |
Product Description
Presentation
As the world modernizes, spaces are becoming increasingly crowded. Thus, the instances where the M4 was the shorter version of the M16 have evolved to where the M4 is now too long again, leading to the creation of the M4 CQB with an even smaller size using lighter alloys to allow for better maneuverability in tight spaces.
Exterior of the Replica

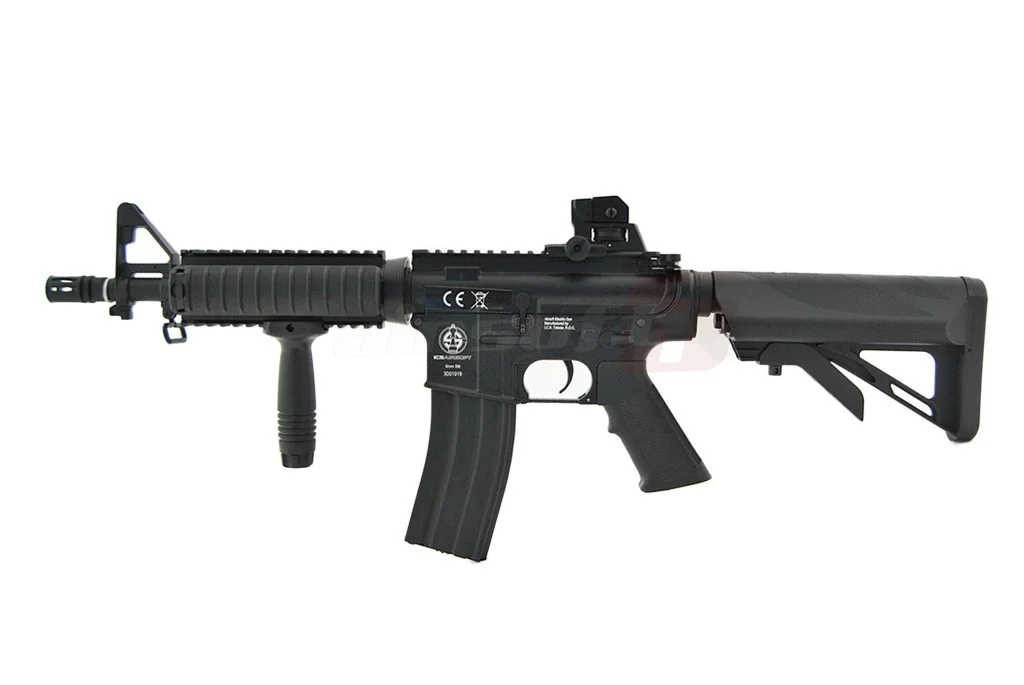

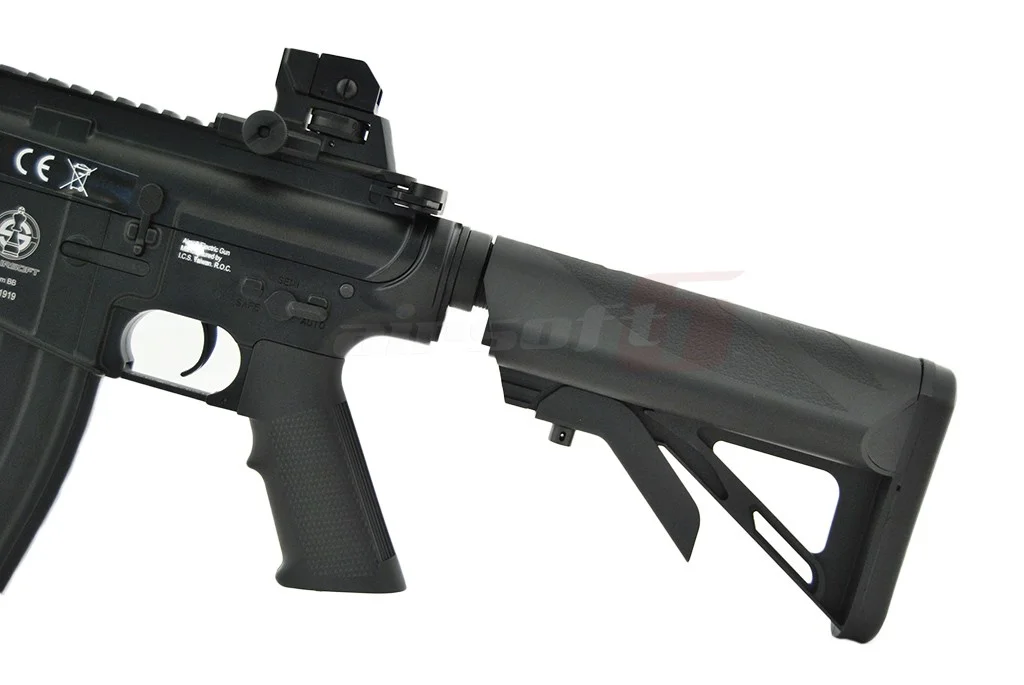

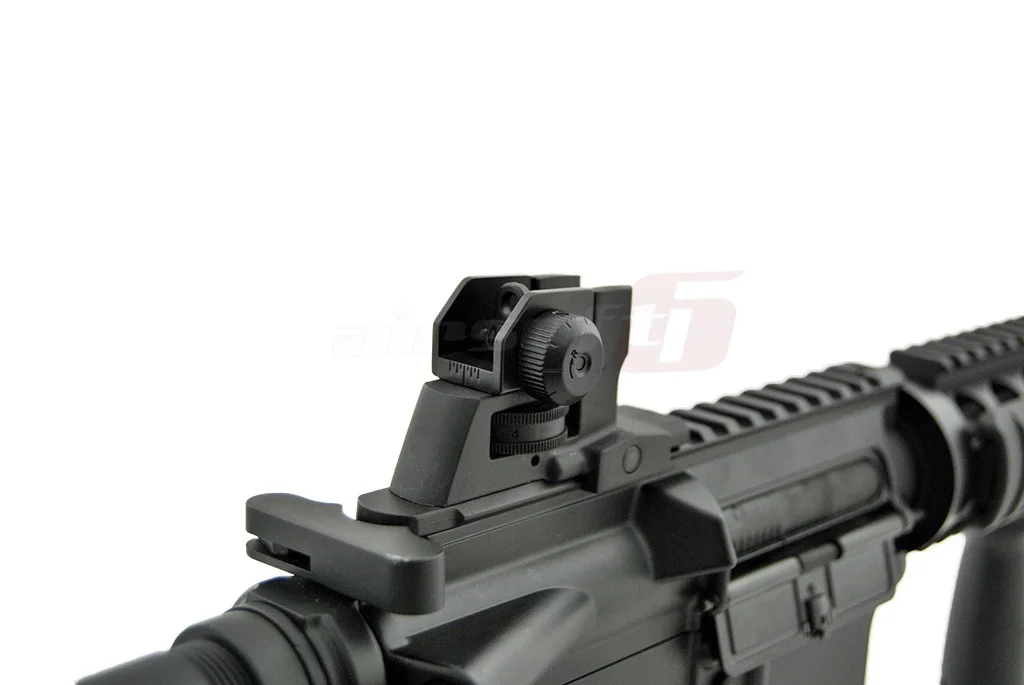

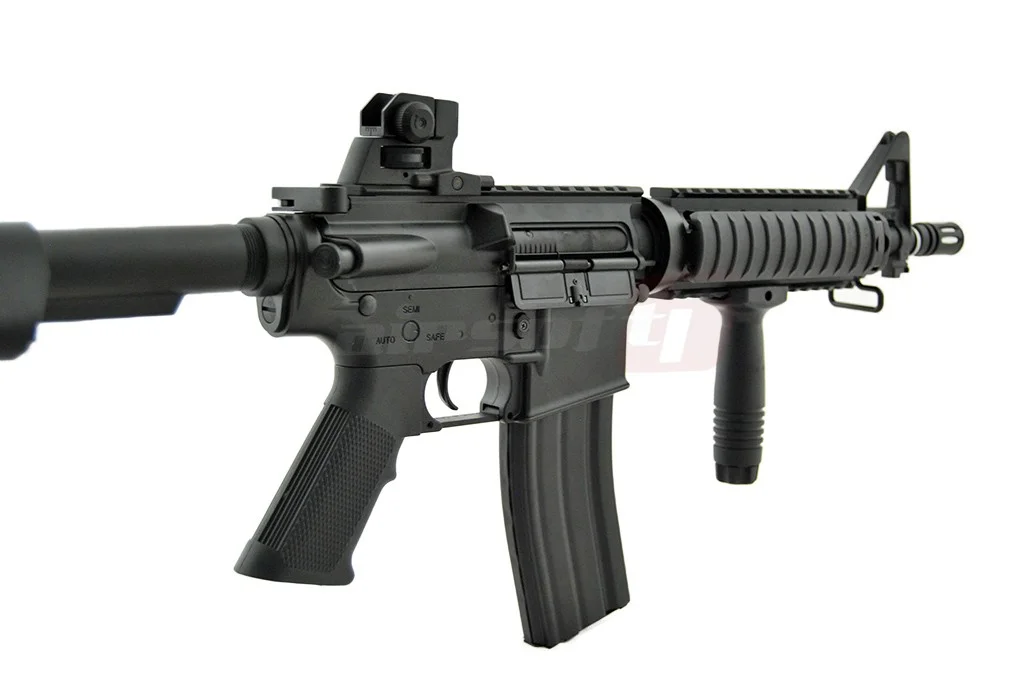

This toy manufactured by ICS closely mimics the M4 CQB platform. The materials used and the finishes are of very high quality. The airsoft replica is primarily made of durable metal. The RIS front system allows for good accessorizing of the airsoft replica. On the upper part of the airsoft replica, there is a standard rail that allows for the mounting of advanced sighting devices. The airsoft replica is equipped with a classic sighting system. The rear part can be removed to facilitate the mounting of a scope, for example. The ABS plastic elements are the rail system guards, the grip, and the stock of the airsoft replica. The stock is adjustable with 6 positions and provides space for the battery.
Interior of the Replica
This is where the most interesting part happens. The gearbox is of the split type. What does this mean? The gearbox or gearbox has been divided into 2 parts. The part containing the gears and contacts and the part containing the air group along with the spring and tappet plate. Access is much simplified compared to the standard design, plus it can be easily replaced by partially disassembling the airsoft replica. The internal components are of high quality, providing good reliability over time. The airsoft replica fires BBs at a speed of approximately 100-105 m/s using 0.20g BBs. For optimal performance, 0.25g BBs are recommended.
The release button located on the right side, which normally has no role in most toys, here serves the purpose of decompressing the spring. This action is mandatory every time partial disassembly of the airsoft replica is desired to avoid damaging the piston. The hop-up chamber is made from a single piece and has been redesigned; unlike the classic model, the adjustment is radial. Thus achieving fine and stable adjustment.
Power Supply
Attention, the airsoft replica package does not include a battery. When purchasing a battery, it is necessary to consider acquiring a battery specifically designed for this replica, which is stored inside the stock. If you wish to use another type of battery, it is necessary to install a standard Tamiya or Deans connector. LiPo batteries can be used but must not exceed 7.4V. Any voltage higher than 9.6V may damage the replica. It is recommended to use high-quality BBs for airsoft, and reusing BBs is prohibited.
