Frequently Asked Questions

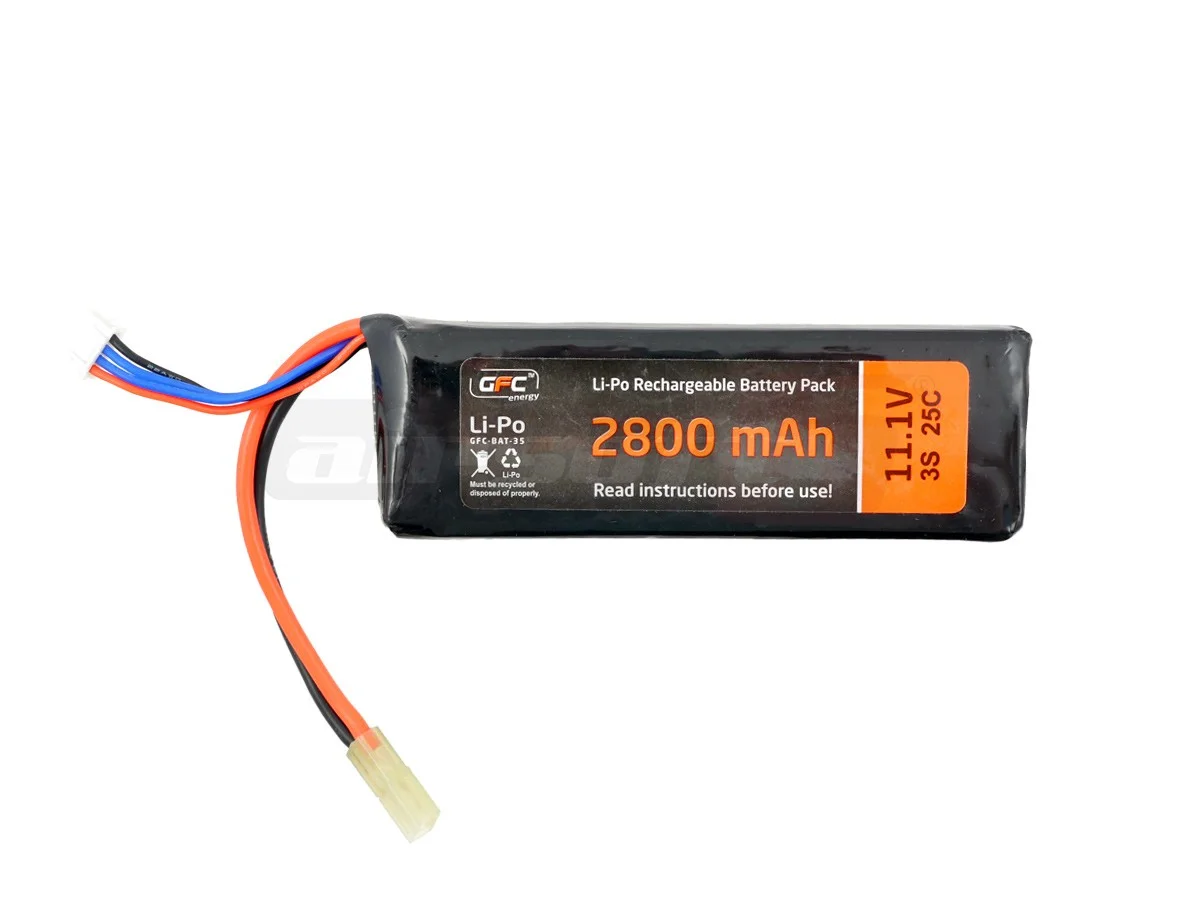

LiPo battery in a compact form made up of 3 cells resulting in 11.1V with a capacity of 2800 mAh. The battery discharge is approximately 25C, providing the necessary current for most replicas.
Equipment Specifications
| Battery Connector | Small Tamiya |
| Magazine Capacity | 2800 mAh |
| Voltage | 11.1 V |
| Battery Shape | Compact |
| Discharge | 25 C |
| Battery Type | Li-Po |
| Width | 44 mm |
| Height | 15 |
| Length | 133 mm |
Product Description
This LiPo battery consists of 3 cells combined in a compact rectangular assembly. The battery technology allows for very small dimensions of the entire assembly, making it possible to mount in very limited battery spaces. The battery discharges at 25C.
The battery's insulation is well-made, and the wires and connectors are of high quality.
WARNING:
- Lithium ion Polymer (LiPo) batteries can be extremely dangerous.
- The user must ensure all precautions are taken to prevent: fire, bodily injury, and damage to property.
- In case of improper use, damage, or manufacturing defects, LiPo batteries can cause explosions, fire, smoke, and poisoning risks.
- By purchasing this type of battery, the user assumes responsibility for any risks associated with LiPo batteries.
- LiPo batteries are not toys and should not be left within reach of children as they can pose a real danger to their health.
- LiPo batteries should not be thrown into fire, placed in an oven or microwave as they may explode.
- LiPo batteries contain/can emit electrolytes, toxic vapors, and other harmful chemicals. Handle these batteries with care and avoid any contact with skin, eyes, or other body parts. In case of contact, rinse thoroughly with water and contact a doctor immediately.
- Do not attempt to charge mechanically or chemically damaged batteries.
Actions Leading to Battery Damage
- Charging LiPo batteries with a charger that lacks balancing and automatic shut-off features.
- Connecting in series or parallel with another cell or battery even if they appear similar.
- Exceeding the maximum and minimum operating voltages.
- A temperature drop or rise outside the allowed limits.
- Charging current that is too high.
- Short-circuiting the battery terminals.
- Subjecting the battery to mechanical shocks such as dropping, hitting, bending, cutting, twisting, deforming, or puncturing.
- Contact with liquids.
- Improvising an improper charging setup.
- Using inappropriate, improvised charging cables.
General Information
- LiPo batteries are made up of cells.
- The parameters of this type of battery are: Voltage measured in Volts (V), Capacity measured in milliamp hours (mAh), and instantaneous discharge (C)
- Each LiPo battery has a power connector and a charging connector.
- The power connector is used to power the device intended for powering.
- The charging connector is exclusively for charging the battery. (in some cases, charging is done through both the power and charging connectors)
- The battery is charged using the charging connector, and in some advanced chargers, it is necessary to connect the power connector as well.
- LiPo batteries are charged with special chargers designed for LiPo batteries that have the function of balancing the voltage of each cell and automatic shut-off of the charging.
- Each LiPo battery has a maximum charge rate of 1.05X of the battery capacity, which must not be exceeded during charging.
- Each cell has a maximum voltage of 4.2V and a minimum voltage of 2.7V.
- During operation or charging, the battery temperature must not drop below 0'C or rise above 50'C.
- For long-term storage of the battery, the battery capacity should be between 15 and 25% of the maximum value.
Airsoft6 cannot guarantee that you have used correct operating methods and have adhered to the conditions for charging, discharging, or storing LiPo batteries. For this reason, we reserve the right to refuse replacement, as a warranty, for improperly used batteries (which violate the above instructions and warnings) and are not responsible for material, moral damages, or loss of human life.
