Frequently Asked Questions
This LiPo battery can be used with well-optimized replicas where the current demand is not very high.
Equipment Specifications
| Battery Connector | Small Tamiya |
| Magazine Capacity | 1200 mAh |
| Voltage | 7.4 V |
| Battery Shape | Crane |
| Discharge | 20 °C |
| Battery Type | Li-Po |
| Width | 21 mm |
| Height | 12 mm |
| Length | 120 mm |
Product Description
Presentation
Gens ACG is a company that operates in the battery manufacturing sector, offering quality products at competitive prices.
Description

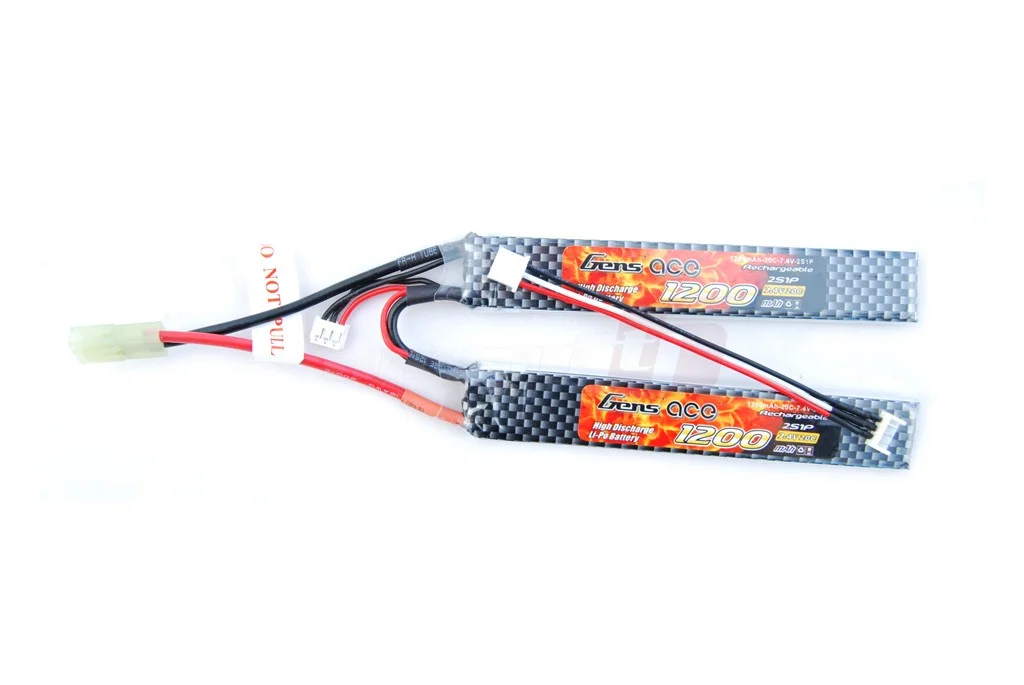

This LiPo battery consists of 2 separate cells. The small capacity of the battery allows for reduced overall dimensions, making it suitable for installation in compact battery compartments. The 20C discharge rate provides sufficient current, meeting the power requirements of the replica.
The battery's insulation is well-made, and the connector wires are low-resistance quality wires.
Packaging
The batteries are individually packaged in protective foil against mechanical shocks and a cardboard box. The package includes an adapter that allows the battery to connect to most chargers designed for LiPo batteries.
WARNING:
- Lithium-ion Polymer (LiPo) batteries can be extremely dangerous.
- The user must take all necessary precautions against: potential fire, bodily injury, and property damage.
- In case of improper use, damage, or manufacturing defects, LiPo batteries can cause explosions, fire, smoke, and poisoning risks.
- By purchasing this type of battery, the user assumes responsibility for any risks associated with LiPo batteries.
- LiPo batteries are not toys and should not be left within reach of children as they can pose a real danger to their health.
- LiPo batteries should not be thrown into fire, placed in an oven, or microwave as they may explode.
- LiPo batteries contain/can emit electrolytes, toxic vapors, and other harmful chemicals. Handle these batteries carefully and avoid any contact with skin, eyes, or other body parts. In case of contact, rinse thoroughly with water and contact a doctor immediately.
- Do not attempt to charge mechanically or chemically damaged batteries.
Actions Leading to Battery Damage
- Charging LiPo batteries with a charger that lacks balancing and automatic shut-off features.
- Connecting in series or parallel with another cell or battery even if they appear similar.
- Exceeding the maximum and minimum operating voltages.
- A drop or rise in temperature outside the permissible limits.
- Excessive charging current.
- Short-circuiting the battery terminals.
- Subjecting the battery to mechanical shocks such as dropping, hitting, bending, cutting, twisting, deforming, or puncturing.
- Contact with liquids.
- Improvising an improper charging setup.
- Using inappropriate, improvised charging cables.
General Information
- LiPo batteries consist of cells.
- The parameters of this type of battery are: Voltage measured in Volts (V), Capacity measured in milliamp-hours (mAh), and instantaneous discharge (C)
- Each LiPo battery has a power connector and a charging connector.
- The power connector is used to power the device intended for powering.
- The charging connector is exclusively for charging the battery. (in some cases, charging is done through both the power and charging connectors)
- The battery is charged using the charging connector, and for some advanced chargers, the power connector must also be connected.
- LiPo batteries are charged with special chargers designed for LiPo batteries that have cell voltage balancing and automatic shut-off features.
- Each LiPo battery has a maximum charging rate of 1.05X its capacity, which must not be exceeded during charging.
- Each cell has a maximum voltage of 4.2V and a minimum voltage of 2.7V.
- During operation or charging, the battery temperature must not drop below 0°C or rise above 50°C.
- For long-term storage of the battery, the capacity should be between 15% and 25% of the maximum value.
Airsoft6 cannot guarantee that you have used correct operating methods and have adhered to the conditions for charging, discharging, or storing LiPo batteries. For this reason, we reserve the right to refuse replacement, as a warranty, for improperly used batteries (which violate the above instructions and warnings) and are not responsible for material, moral damages, or loss of life.
