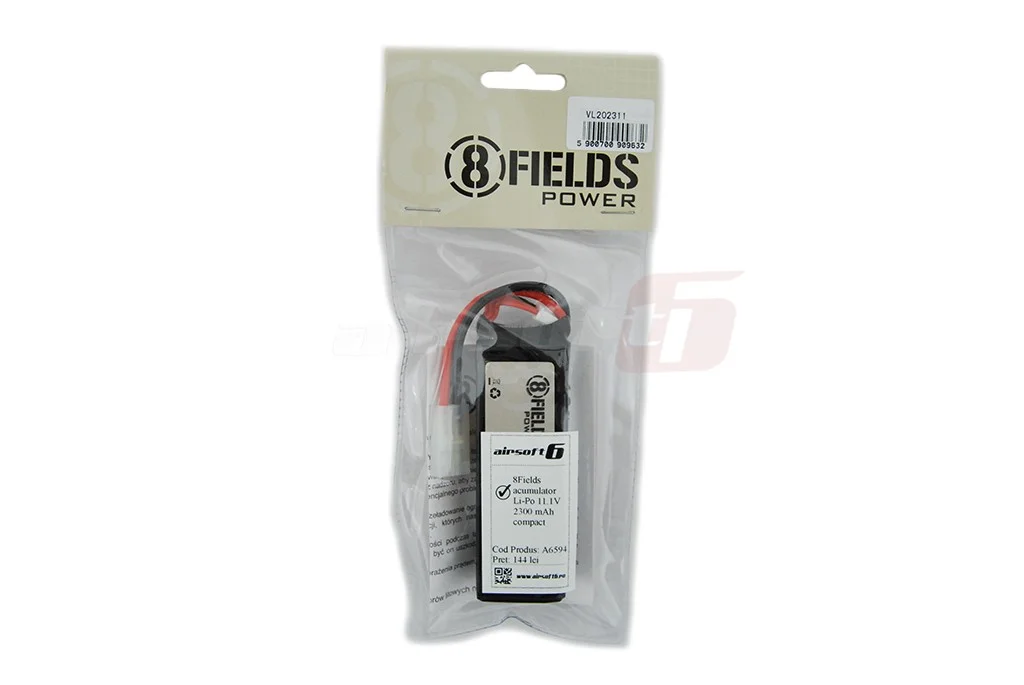

8Fields LiPo Battery 11.1v 2200 mAh Compact

Product code: A6594

★★★★★
5.00 (1 reviews)
8Fields
30.00
Out of stock
You can pay in installments
Details
Courier delivery
Order before 17:00
You will receive the package tomorrow, 26 May
Delivery & Returns
Free Delivery orders over 200 lei
Fastest delivery priority processing
Dynamic Warranty depending on category
14 days return money back guaranteed

Compact LiPo battery consisting of 3 cells resulting in 11.1V with a capacity of 2200mAh. The battery discharge is approximately 20C, providing the necessary current for the replica in most cases.

Equipment Specifications

Battery Connector Small Tamiya
Magazine Capacity 2200 mAh
Voltage 11.1 V
Battery Shape Compact
Discharge 20 °C
Battery Type Li-Po
Width 34 mm
Height 24 mm
Length 103 mm

Product Description

This LiPo battery features 3 cells combined into a compact rectangular assembly. The battery technology allows for very small overall dimensions, making it possible to mount it in tight spaces designated for batteries. The 20C discharge rate allows for sufficient current supply to meet the demands of the replica.

The battery's insulation is well-made, and the wires and connectors are of high quality.

WARNING:

  • Lithium Polymer (LiPo) batteries can be extremely dangerous.
  • The user must take all precautions against: potential fire, bodily injury, and property damage.
  • In case of improper use, damage, or manufacturing defects, LiPo batteries can cause explosions, fire, smoke, and poisoning risks.
  • By purchasing this type of battery, the user assumes responsibility for any risks associated with LiPo batteries.
  • LiPo batteries are not toys and should not be left within reach of children as they can pose a real danger to their health.
  • LiPo batteries should not be thrown into fire, placed in an oven, or microwave as they may explode.
  • LiPo batteries contain/may emit electrolytes, toxic vapors, and other harmful chemicals. Handle these batteries carefully and avoid any contact with skin, eyes, or other body parts. In case of contact, rinse thoroughly with water and contact a doctor immediately.
  • Do not attempt to charge mechanically or chemically damaged batteries.

Actions Leading to Battery Damage

  • Charging LiPo batteries with a charger that lacks balancing and automatic shut-off features.
  • Connecting in series or parallel with another cell or battery even if they appear similar.
  • Exceeding maximum and minimum operating voltages.
  • A drop or rise in temperature beyond acceptable limits.
  • Charging current that is too high.
  • Short-circuiting the battery terminals.
  • Subjecting the battery to mechanical shocks such as dropping, hitting, bending, cutting, twisting, deforming, or puncturing.
  • Contact with liquids.
  • Improvising an inadequate charging setup.
  • Using inappropriate, improvised charging cables.

General Information

  • LiPo batteries are composed of cells.
  • The parameters of this type of battery are: Voltage measured in Volts (V), Capacity measured in milliamp hours (mAh), and instantaneous discharge (C)
  • Each LiPo battery has a power connector and a charging connector.
  • The power connector is used to power the device intended for supply.
  • The charging connector is exclusively for charging the battery. (in some cases, charging is done through both the power and charging connectors)
  • The battery is charged using the charging connector, and for some advanced chargers, the power connector must also be connected.
  • LiPo batteries are charged with special LiPo battery chargers that have cell voltage balancing and automatic shut-off features.
  • Each LiPo battery has a maximum charging rate of 1.05X its capacity, which must not be exceeded during charging.
  • Each cell has a maximum voltage of 4.2V and a minimum voltage of 2.7V.
  • During operation or charging, the battery temperature must not drop below 0°C or exceed 50°C.
  • For long-term storage, the battery capacity should be between 15% and 25% of its maximum value.

Airsoft6 cannot guarantee that you have used correct operating methods and have adhered to the charging, discharging, or storage conditions for LiPo batteries. For this reason, we reserve the right to refuse replacement, as a warranty, for improperly used batteries (which violate the instructions and warnings above) and are not responsible for material damage, moral losses, or loss of life.
