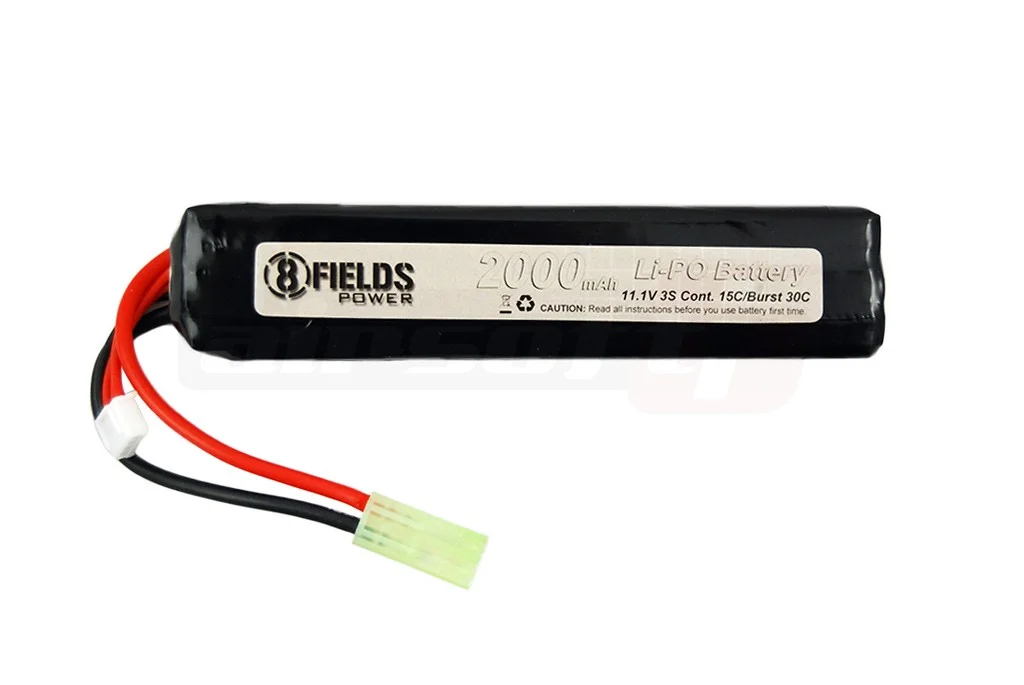

Compact LiPo battery consisting of 3 cells resulting in 11.1V with a capacity of 2000 mAh. The battery discharge rate is approximately 15C, providing the necessary current for most replicas.
Equipment Specifications
| Battery Connector | Small Tamiya |
| Magazine Capacity | 2000 mAh |
| Voltage | 11.1 V |
| Battery Shape | Compact |
| Discharge | 15 C |
| Battery Type | Li-Po |
| Width | 20 mm |
| Height | 29 mm |
| Length | 128 mm |
Product Description
This LiPo battery features 3 cells combined into a compact rectangular assembly resulting in a voltage of 11.1V. The battery capacity is 2000mAh. The battery technology allows for very small overall dimensions, making it possible to install in very tight spaces designated for batteries. The 15C discharge rate provides sufficient current for the replica's needs.
The battery's insulation is well-made, and the wires and connectors are of high quality.
WARNING:
- Lithium Polymer (LiPo) batteries can be extremely dangerous.
- The user must take all necessary precautions against: potential fire, bodily harm, and property damage.
- In case of improper use, damage, or manufacturing defects, LiPo batteries can cause explosions, fire, smoke, and poisoning risks.
- By purchasing this type of battery, the user assumes responsibility for any risks associated with LiPo batteries.
- LiPo batteries are not toys and should not be left within reach of children as they can pose a real health hazard.
- LiPo batteries should not be thrown into fire, placed in an oven or microwave as they may explode.
- LiPo batteries contain/can emit electrolytes, toxic vapors, and other harmful chemicals. Handle these batteries with care and avoid any contact with skin, eyes, or other body parts. In case of contact, rinse thoroughly with water and contact a doctor immediately.
- Do not attempt to charge mechanically or chemically damaged batteries.
Actions Leading to Battery Damage
- Charging LiPo batteries with a charger that lacks balancing and automatic shut-off features.
- Connecting in series or parallel with another cell or battery even if they appear similar.
- Exceeding maximum and minimum operating voltages.
- A temperature drop or rise beyond the allowed limits.
- Charging current that is too high.
- Short-circuiting the battery terminals.
- Subjecting the battery to mechanical shocks such as dropping, hitting, bending, cutting, twisting, deforming, or puncturing.
- Contact with liquids.
- Improvising an improper charging setup.
- Using inappropriate, improvised charging cables.
General Information
- LiPo batteries consist of cells.
- The parameters of this type of battery are: Voltage measured in Volts (V), Capacity measured in milliamp-hours (mAh), and instantaneous discharge (C)
- Each LiPo battery has a power connector and a charging connector.
- The power connector is used to power the device intended for power supply.
- The charging connector is exclusively for charging the battery. (in some cases, charging is done through both the power and charging connectors)
- The battery is charged using the charging connector, and in some advanced chargers, connecting the power connector is also necessary.
- LiPo batteries are charged with special chargers designed for LiPo batteries that feature cell voltage balancing and automatic shut-off during charging.
- Each LiPo battery has a maximum charging rate of 1.05X its capacity, which must not be exceeded during charging.
- Each cell has a maximum voltage of 4.2V and a minimum voltage of 2.7V.
- During operation or charging, the battery temperature must not drop below 0°C or exceed 50°C.
- For long-term storage, the battery capacity should be between 15 and 25% of the maximum value.
Airsoft6 cannot guarantee that you have used correct operating methods and have adhered to the conditions for charging, discharging, or storing LiPo batteries. For this reason, we reserve the right to refuse the replacement, as a warranty, of improperly used batteries (which violate the instructions and warnings above) and are not responsible for material, moral damages, or loss of life.
