VB Power LiPo Battery 7.4V 1100mAh Stick Deans

Presentation

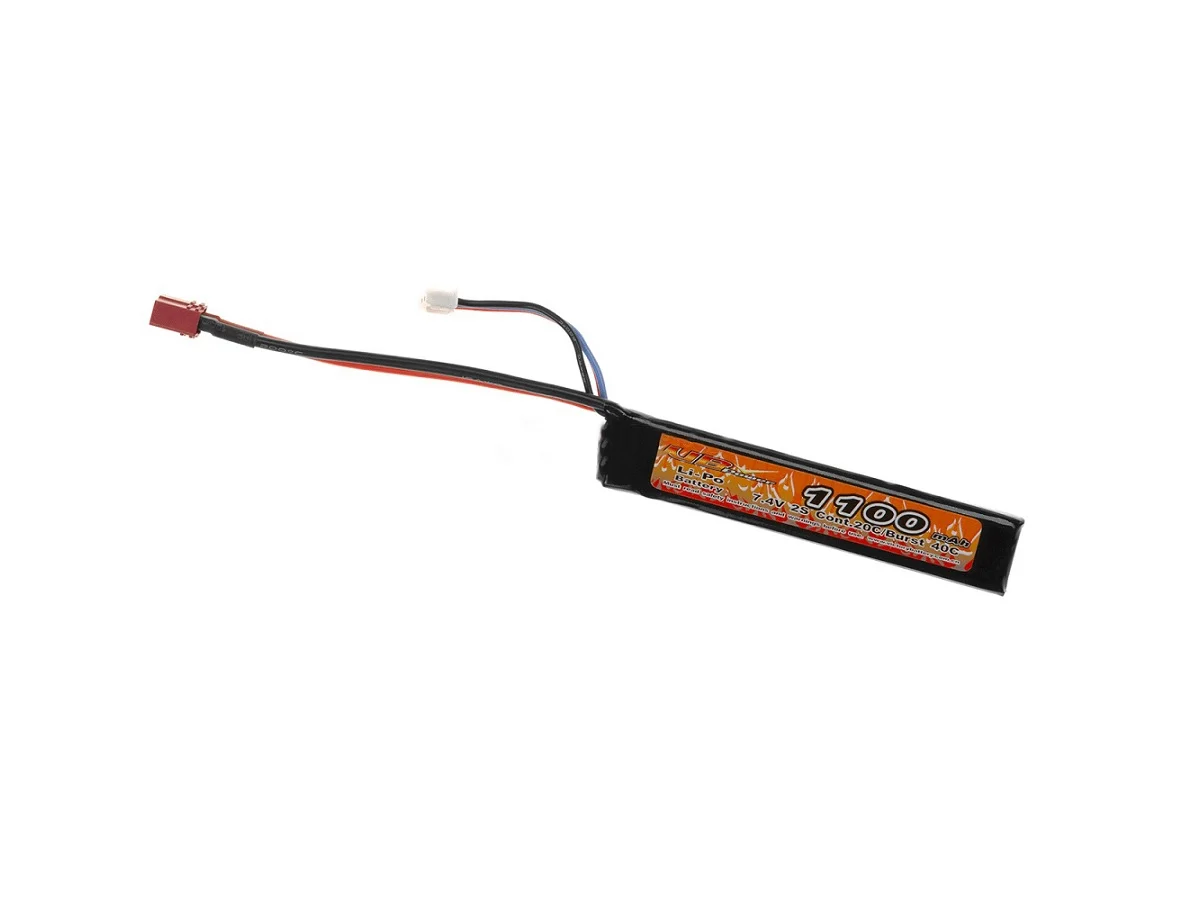

This VB Power battery is a LiPo type and consists of 2 cells forming a compact assembly. It has a voltage of 7.4V and a capacity of 1100mAh. The battery technology allows for very small dimensions of the entire assembly, thus enabling installation in very limited battery spaces. The 20C discharge of the battery allows for optimal current supply for the replica's power needs.

The battery's insulation is well made, and the wires and connectors are of high quality. This battery is equipped with a large Deans connector.

WARNING:

• Lithium ion Polymer (LiPo) batteries can be extremely dangerous.
• The user must take all precautionary measures for: potential fire, bodily injury, and property damage.
• In case of improper use, damage, or manufacturing defect, LiPo batteries can cause explosions, fire, smoke, and poisoning risks.
• By purchasing this type of battery, the user assumes responsibility for any risks associated with LiPo batteries.
• LiPo batteries are not toys and should not be left within reach of children as they can pose a real health hazard.
• LiPo batteries must not be thrown into fire, placed in an oven, or microwave as they can explode.
• LiPo batteries contain/can emit electrolytes, toxic vapors, and other harmful chemicals. Handle these batteries carefully and avoid, in any form, contact with skin, eyes, or other body parts. In case of contact, rinse thoroughly with water and contact a doctor immediately.
• Do not attempt to charge mechanically or chemically damaged batteries.

Actions Leading to Battery Damage

• Charging LiPo batteries with a charger without balancing and without automatic shut-off of the charging.
• Connecting in series or parallel a cell or another battery even if they appear similar.
• Exceeding maximum and minimum operating voltages.
• A drop or rise in temperature outside the permitted limits.
• Too high charging current.
• Short-circuiting the battery terminals.
• Subjecting the battery to mechanical shocks such as: dropping, hitting, bending, cutting, twisting, deforming, or puncturing.
• Contact with liquids.
• Improvising an improper charging setup.
• Using inappropriate, improvised charging cables.

General Information

• LiPo batteries are made up of cells.
• The parameters of this type of battery are: Voltage measured in Volts (V), Capacity measured in milliamp-hours (mAh), and instantaneous discharge (C)
• Each LiPo battery has a power connector and a charging connector.
• The power connector is used to power the device intended for powering.
• The charging connector is exclusively for charging the battery. (in some cases, charging is done through both the power connector and the charging connector)
• The battery is charged using the charging connector, and in some advanced chargers, it is necessary to connect the power connector as well.
• LiPo batteries are charged with special chargers for LiPo batteries that have the function of balancing the voltage of each cell and automatic shut-off of the charging.
• Each LiPo battery has a maximum charging rate of 1.05X of the battery capacity, which must not be exceeded during charging.
• Each cell has a maximum voltage of 4.2V and a minimum voltage of 2.7V.
• During operation or charging, the battery temperature must not drop below 0'C or rise above 50'C.
• For long-term storage of the battery, the battery capacity should be between 15 and 25% of the maximum value.

NRG cannot guarantee that you have used correct operating methods and have adhered to the conditions for charging, discharging, or storing LiPo batteries. For this reason, we reserve the right to refuse replacement, as a warranty, for improperly used batteries (which violate the instructions and warnings above) and are not responsible for material, moral damages, or loss of human life.
