Redox BETA Advanced Battery Charger
Product code: A6204
The advanced Redox charger can be used to charge almost all types of batteries. It displays real-time parameters and allows adjustment of charging/discharging currents and voltages. It helps maintain batteries in good working condition.
Equipment Specifications
| Supported Connectors | BEC, JTS, Pliers, Large Deans |
| Power Voltage | 220V AC, 11 ~ 18 V DC |
| Supported Batteries | Pb, Li-Fe, Li-Ion, Li-Po, Ni-MH, Ni-Cd |
| Charge Power | 50 W |
| Discharge Power | 5 W |
| Discharge Current | 0.1 ~ 1 A |
| Charge Current | 0.1 ~ 5 A |
Product Description

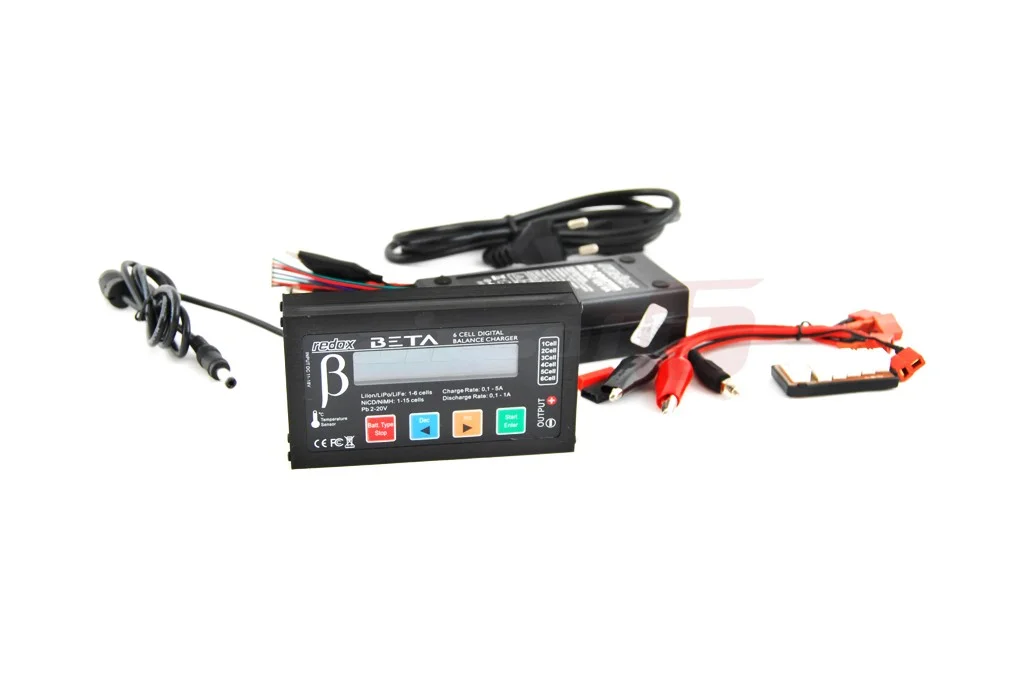

The Redox Beta charger is an advanced charger for charging LiPo, Li-Ion, LiFe, NiMH, NiCd, Pb-acid batteries. Its dimensions are 113x65x23 mm.
The functions of this charger include:
- safe battery discharging.
- fast charging.
- automatic current limiting based on battery capacity.
- ability to program charging and discharging current limits.
- charging time.
- real-time display of voltage and current stored by the battery.
- four programmable buttons.
The charger can charge LiPo, Li-Ion, LiFe batteries between 1 and 6 cells, NiMH and NiCd battery packs of 1-15 cells, and Lead Acid batteries from 2V to 20V.
The charger can provide a cell balancing current of 300mAh.
Operation
The charger can be powered by a special 12V DC and 5A power supply or by connecting a clip adapter that can be powered between 11V and 18V DC. After that, select the desired function and connect the battery. The power supply does not include an adapter for Tamiya connectors. These adapters can be ordered separately. For LiPo, Li-Ion, and LiFe packs, the balancing connector adapter must be connected.

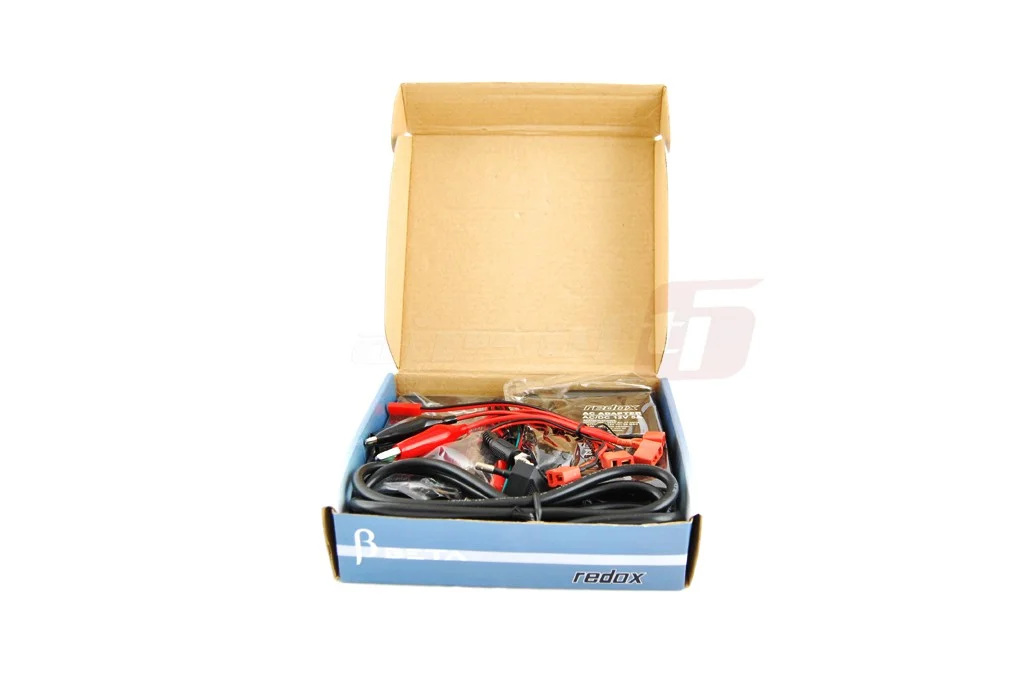

Package

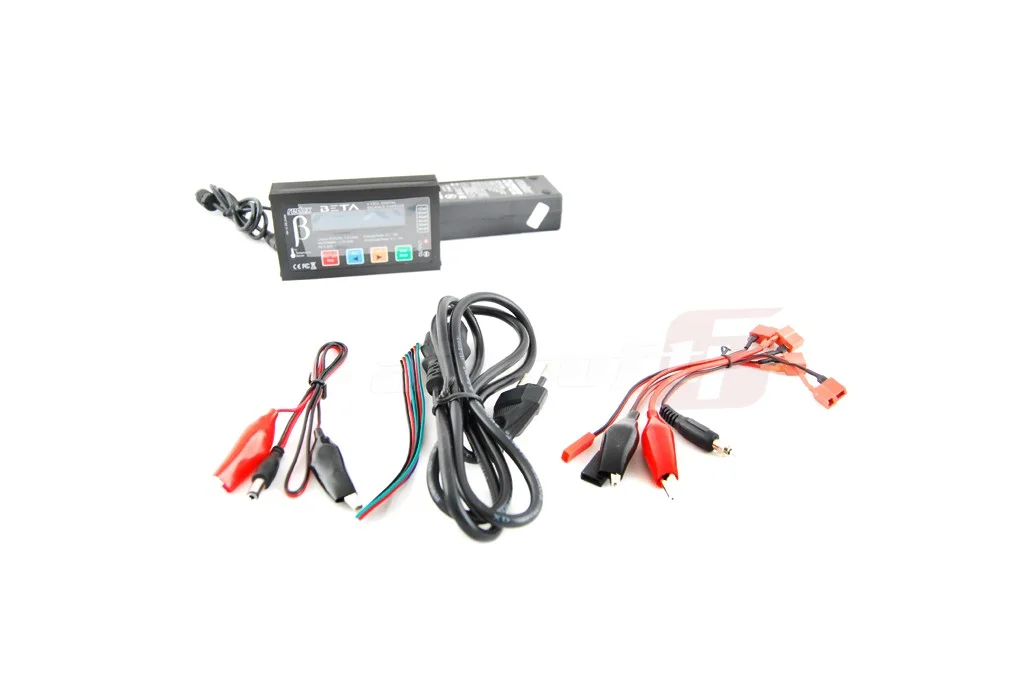

The package includes a 12V 5A DC power supply and battery connection adapters.
