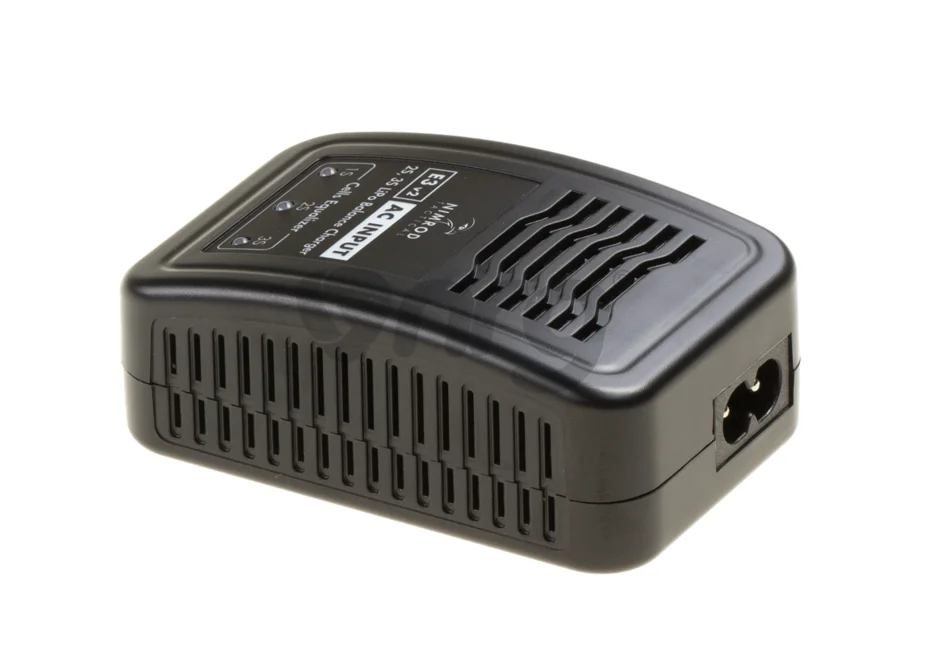

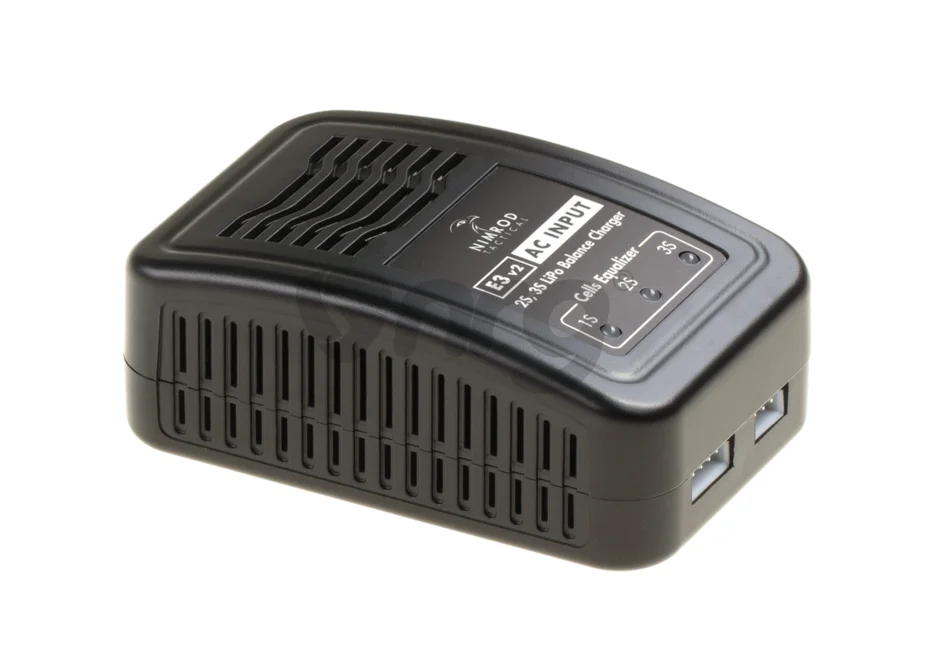

Nimrod LiPo battery charger e3
Product code: A8215
Equipment Specifications
| Supported Connectors | 3S Balance Connector |
| Power Voltage | 220V AC |
| Supported Batteries | Li-Po |
| Charge Current | 800 mAh |
Product Description
This charger is designed for charging LiPo batteries. It can charge both 2-cell and 3-cell batteries, which means 7.4V and 11.1V.
Operation
After connecting to the power supply, the left LED lights up. Then, the battery to be charged can be connected to the corresponding cell plug. Upon connection, the right LED comes on indicating one of the 3 actions. After charging, disconnect the battery first, followed by the charger from the power source. It is not recommended to connect the battery to the charger if the charger is not powered.
Charging is done strictly through the battery charging plug, without the need to connect the power plug as well. The charger is equipped with 3 LEDs. Two for checking the power connection and one for the battery charging status. Red indicates charging, green indicates the battery is charged, and flashing red indicates a possible issue with the battery. The charger cannot charge 2 batteries simultaneously.
Package
The package includes the battery charger and the charger power cable.
