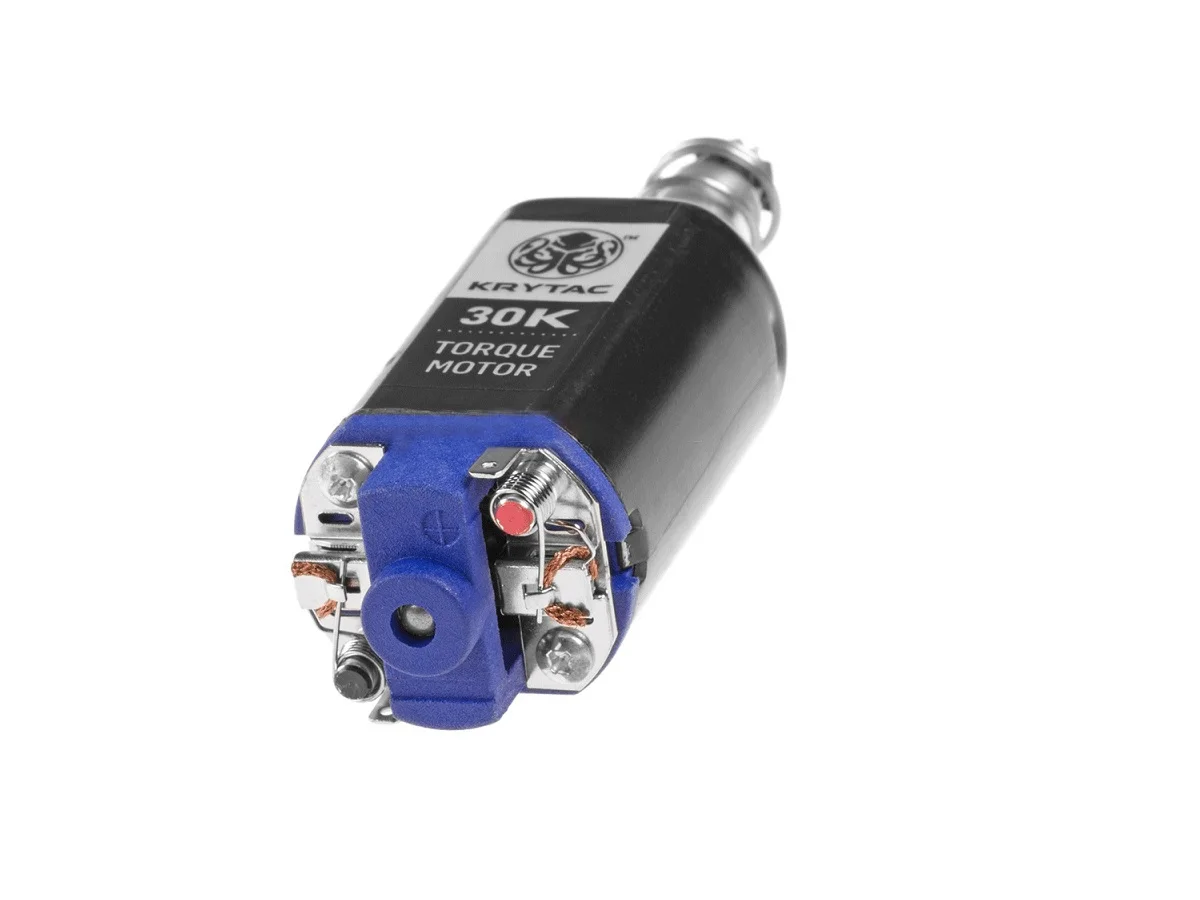

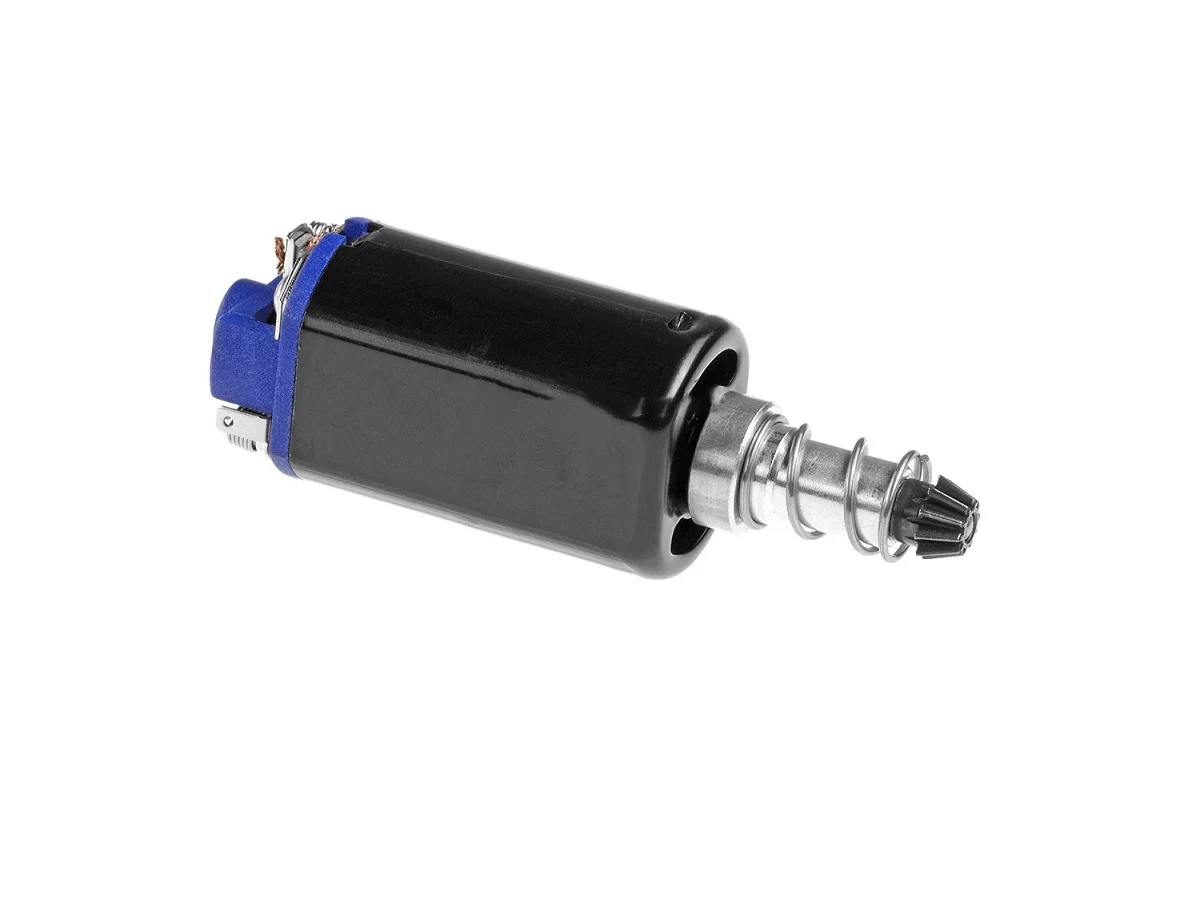

Krytac High Torque 30k Long Motor

We present the Krytac High Torque Long Motor 30,000. This motor is part of the high-end category of motors offered by Krytac. This series of motors stands out from the classic ones in several ways. Firstly, the outer structure is made of CNC aluminum, providing significantly improved rigidity and more efficient heat dissipation. The rotor is supported by bearings at both ends, thus offering low resistance to rotation when the motor heats up, eliminating the expansion factor of the bushings found in most standard motors.

The motor pinion is very durable, made from hardened steel through CNC machining. This way, its wear is much lower than that of classic cast pinions. However, you must be very careful to match the tooth profile of the pinion with the tooth profile of the bevel gear.

The motor windings are made from high-quality copper wire with insulation resistant to high temperatures. This reduces the risk of the insulation melting and short-circuiting the coil. For the knowledgeable, the rotor has 16 TPA, which provides this motor with a balance between power and rate of fire.

The motor magnets are made of neodymium and have a thick profile across their entire surface. They are well anchored and provide a constant magnetic field even at high temperatures. However, it should be noted that the current requirement increases with temperature.

The motor brushes are positioned vertically and have a thicker profile than those of classic motors. Thus, they will provide much better electric current transfer, consuming less current while also offering improved acceleration compared to motors using standard brushes.

For powering the motor, you can use NiMh batteries of 8.4-9.6V or LiPo batteries of 7.4-11.1V with a discharge rate of up to 50C. We do not recommend powering the motor with a higher voltage as it will negatively affect the lifespan of the motor and gearbox.
