Jing Gong M4 CQB Metal

A toy based on one of the most common platforms of the moment. M4/M16 aimed at providing players with a compact toy designed for use in confined spaces and excellent upgrade potential. The M4/M16 platform offers the widest range of upgrades and accessories on the market.

Exterior of the Replica

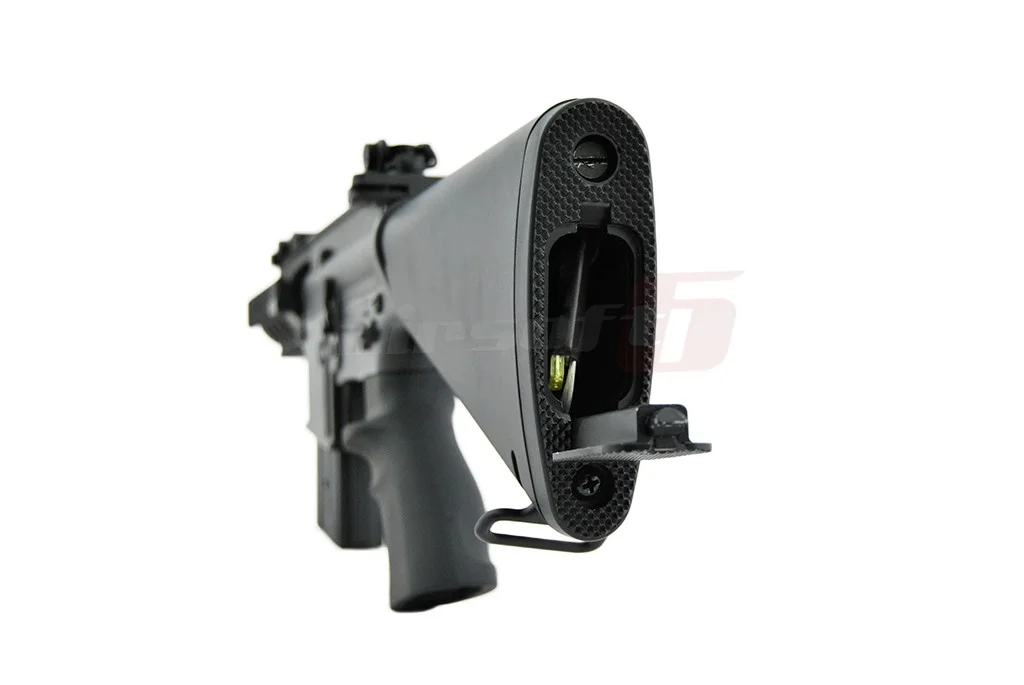

The body of the airsoft replica is made of durable metal. The materials used and the quality of the finishes indicate robustness and reliability. The stock of the airsoft replica and the grip are made from ABS plastic covered with a rubberized layer for improved grip.

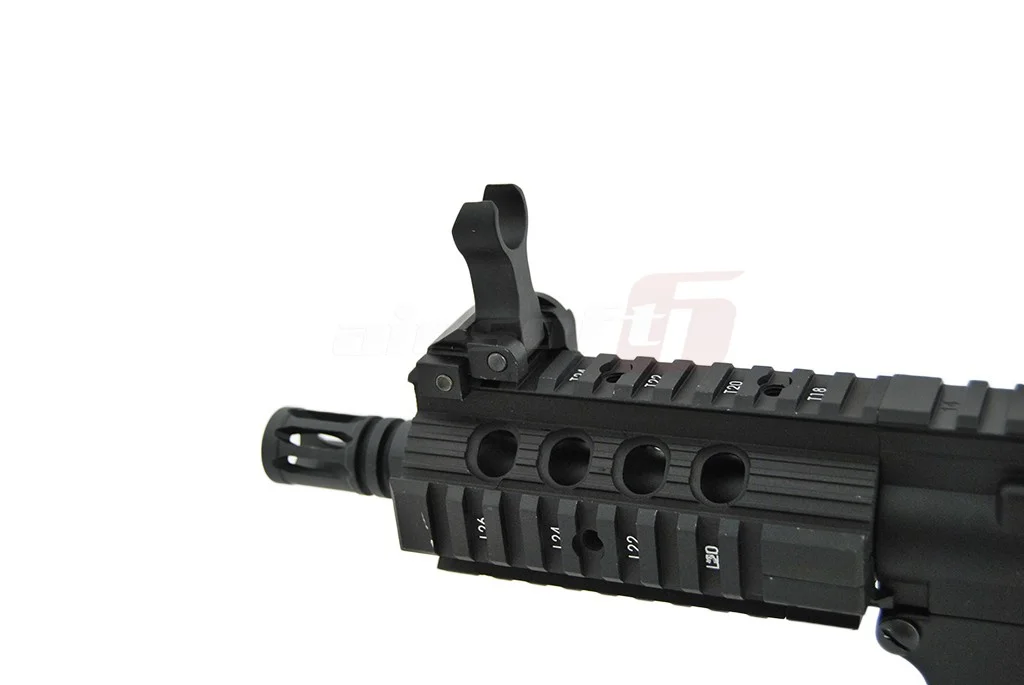

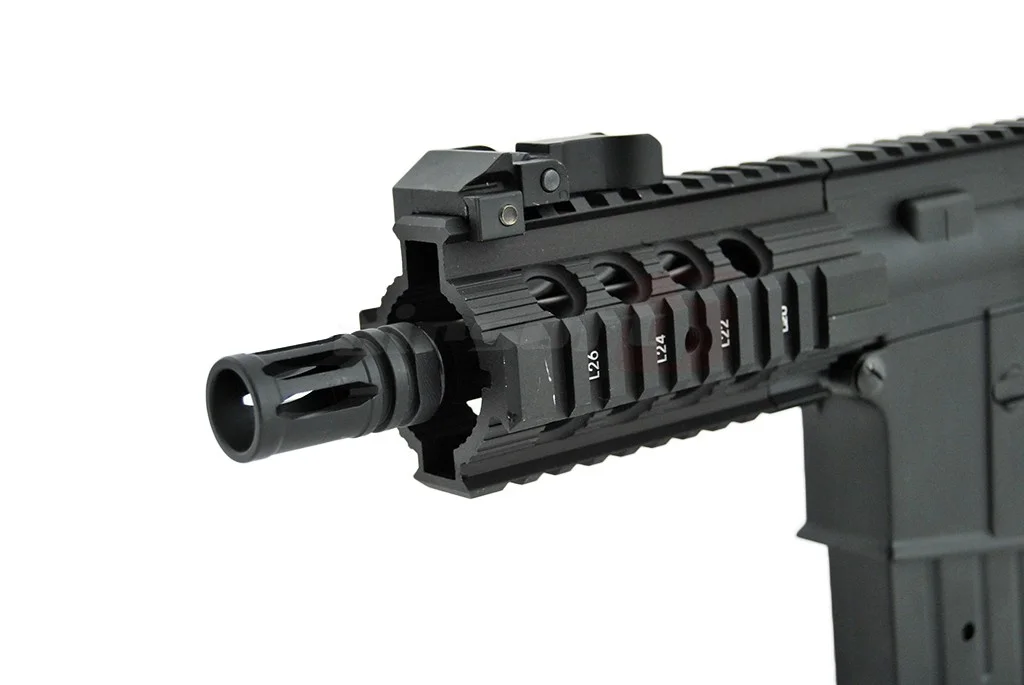

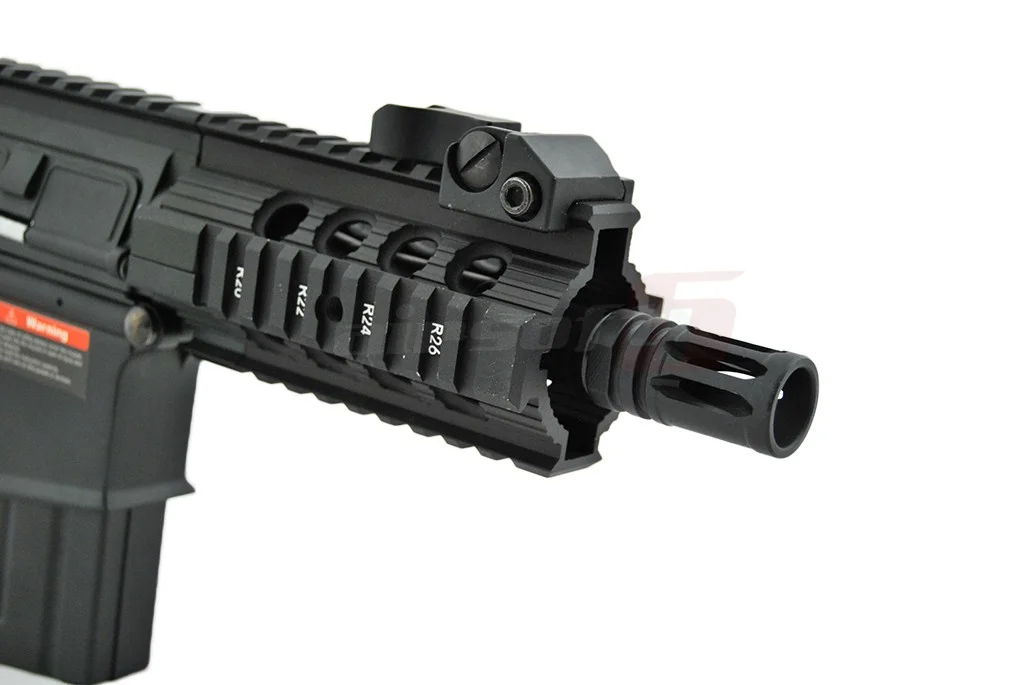

At the front, there is a free float rail system that enhances the accessorization of the replica. On the top, there are 2 foldable metal sight systems.

Interior of the Replica

The airsoft replica is equipped with a version 2 metal gearbox compatible with a multitude of upgrades available on the market such as; pistons, gears, motors, etc. Inside, there is a piston with metal teeth and 7mm bearings. The spring guide is made of metal. The motor is high torque. The hop-up chamber is made of metal, providing wear resistance. It is easy to adjust, and once set, the effect is consistent. To access the hop-up chamber, it is necessary to cock the replica using the upper lever. The inner barrel diameter is standard at 6.08 mm, and the accuracy and consistency are good.
The firing rate of the airsoft replica is around 12-13 BBs per second powered by 8.4V, and the speed is approximately 100.105 m/s measured with 0.20g BBs. Notably, there is a mosfet (without active breaking) to protect the internal contacts.

Power Supply

The airsoft replica is equipped with a small Tamiya connector and supports batteries of up to 9.6V. Any higher voltage may seriously damage the internal components. It is recommended to purchase a 7.4V 2300 mAh Li-Po battery for greater operational autonomy. The included BB loader is of the Hi-Cap type and can hold 190 6mm BBs.
