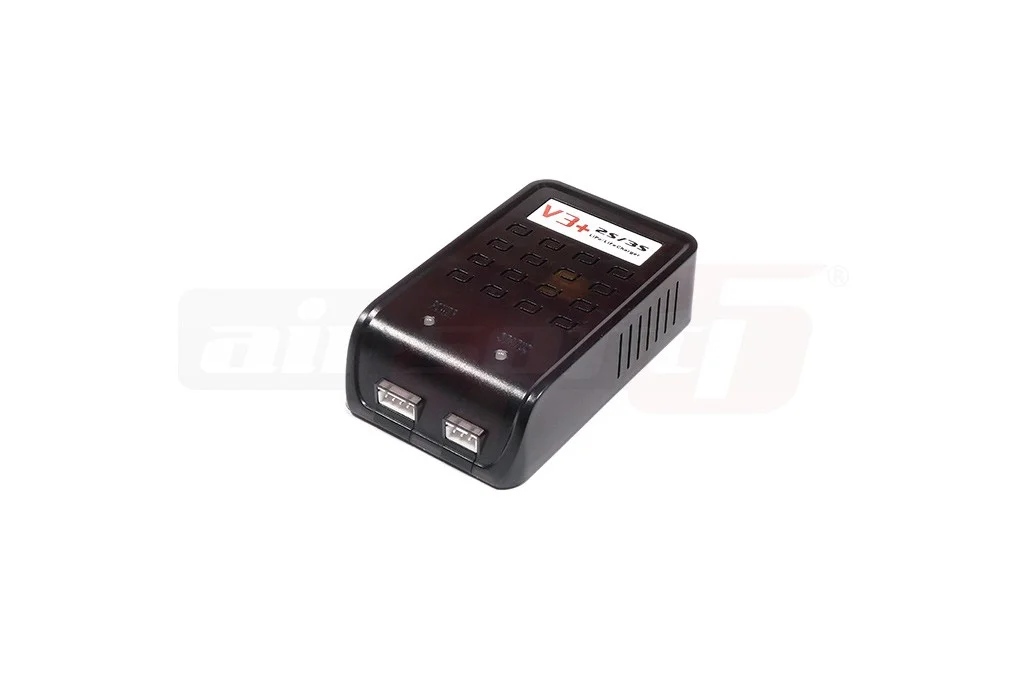

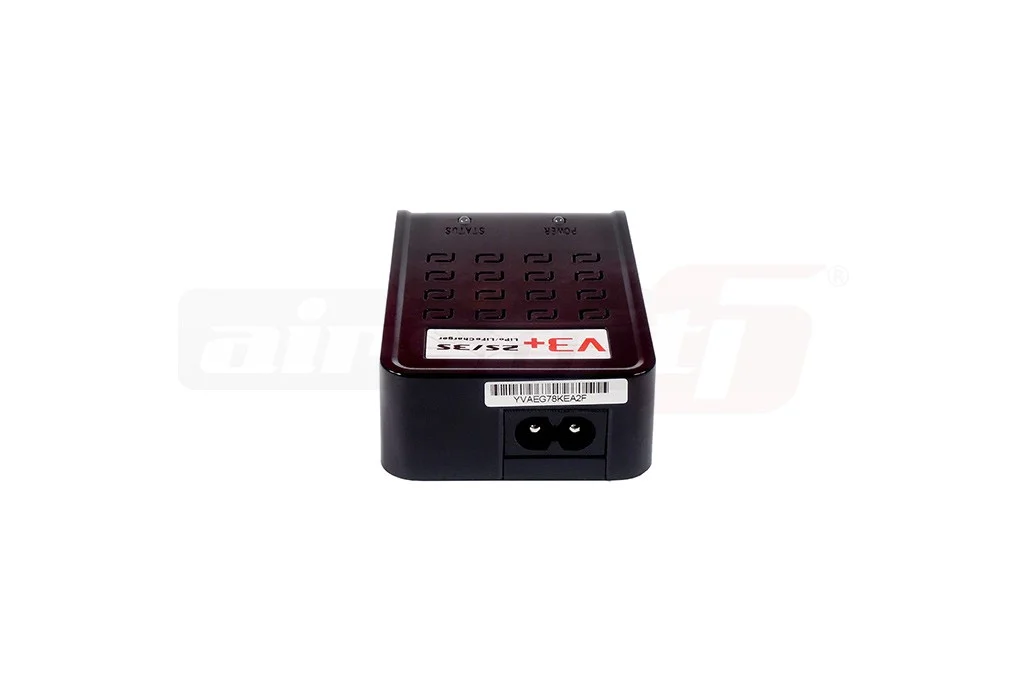

iPower LiPo Battery Charger
Product code: A7706
A charger designed for small LiPo batteries with the capability of balancing the battery cells. The charger is equipped with a charging indicator and automatic shut-off when charging is complete. Due to its compact size and special features, this charger is an ideal choice for budget-conscious users.
Equipment Specifications
| Supported Connectors | 3S Balance Connector, 2S Balance Connector |
| Power Voltage | 220V AC |
| Supported Batteries | Li-Po |
| Charge Current | 800 mA |
Product Description
This charger is intended for charging LiPo batteries. It can charge both 2-cell and 3-cell batteries, meaning 7.4V and 11.1V.
Operation
After connecting to the power supply, the left LED lights up. Then, the battery to be charged can be connected to the corresponding cell count socket. Upon connection, the right LED activates, indicating one of three actions. After charging, first disconnect the battery, then the charger from the power supply. It is not recommended to connect the battery to the charger if the charger is not powered.
Charging will strictly occur through the battery's charging socket, and the power socket does not need to be connected. The charger is equipped with 2 LEDs. One to check the power connection and one for the battery charging status. Red indicates charging, green indicates that the battery is fully charged, and flashing red indicates a potential issue with the battery. The charger cannot charge 2 batteries simultaneously.
Package
The package includes the battery charger and the charger power cable.
