G&P M4 Ball Rifle short

Presentation

With the modernization of the world, spaces are becoming increasingly crowded. The instances where the M4 was the shortened version of the M16 have reached a point where the M4 is again too long, thus the M4 CQB was created with an even smaller size, using lighter alloys that allow for better maneuverability in tight spaces.

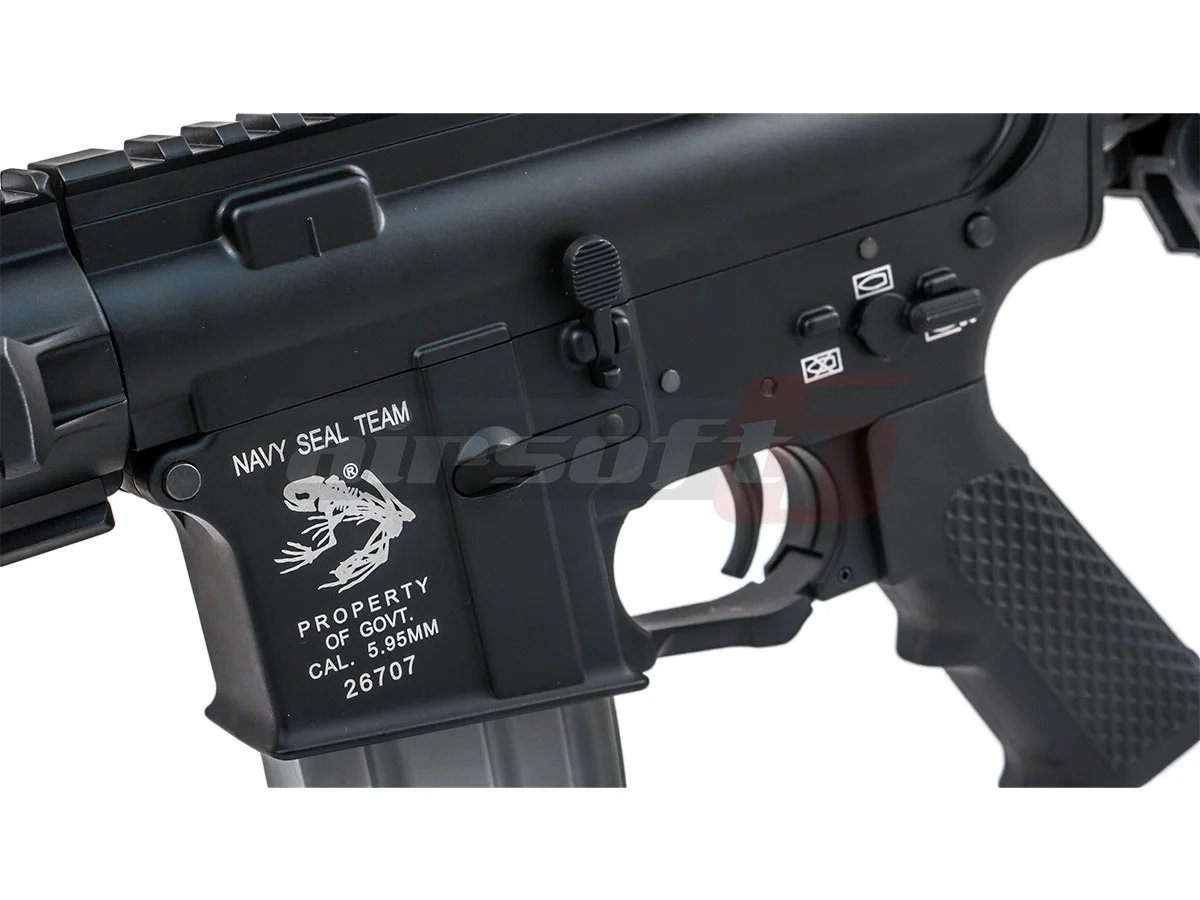

Exterior of the replica

This G&P airsoft replica represents a model that replicates some of the most modern and commonly used platforms of today. The base platform is the Barbie doll of the market, the M4, thus a large part of the accessories and components available in the airsoft market are for this platform.

The free float front rail system allows for extensive accessorization of the replica; flashlights, lasers, grips, ornaments, and more. The replica is equipped with classic foldable sights, which allow them to remain on the replica even when advanced sighting devices are used. At the front, there is a loudener system designed to amplify the sound produced when firing (with BBs). Most components of the replica are made from high-quality metal alloys.

To secure the replica, a sling with a quick detach point can be used. A QD ring is included in the package.

Interior of the replica

The airsoft replica's gearbox is version 2 equipped with 8 mm bearings. The interior of the gearbox is carefully machined; the gears are made from a hard and wear-resistant metal, and the shimming is very well done. The cylinder head is made of aluminum, as is the nozzle, which is also equipped with a sealing o-ring. The cylinder is specifically designed for G&P, meaning it is ported internally towards the opposite end of the discharge. The piston is made from POM, and the piston head is made from polycarbonate. Using 0.20g BBs, the replica is capable of a velocity of 110-115 m/s. The hop-up chamber is metal and allows for hop-up adjustment adjustment.

The motor is a high-speed model, G&P M120, which, together with a 9.6V and 2000 mAh battery, can operate up to 21-22 BBs per second.

Power Supply

The airsoft replica is equipped with a large Deans connector and supports 7.4V LiPo or 8.4V and 9.6V NiMH batteries. It is not recommended to use a battery larger than 9.6V as it may damage the airsoft replica. It is recommended to use quality BBs weighing 0.25g for optimal performance. Reusing BBs or using low-quality BBs is not recommended as it may damage the replica.
