Frequently Asked Questions
This LiPo battery is designed for AEP electric pistols. In most cases, modifications to the replica are required for it to function with this battery.
Equipment Specifications
| Battery Connector | JST |
| Magazine Capacity | 450 mAh |
| Voltage | 7.4 V |
| Battery Shape | Compact |
| Discharge | 25 C |
| Battery Type | Li-Po |
| Width | 30 mm |
| Height | 10 mm |
| Length | 55 mm |
Product Description
Presentation
Gens ACG is a company that operates in the battery manufacturing sector, offering quality products at competitive prices.
Description

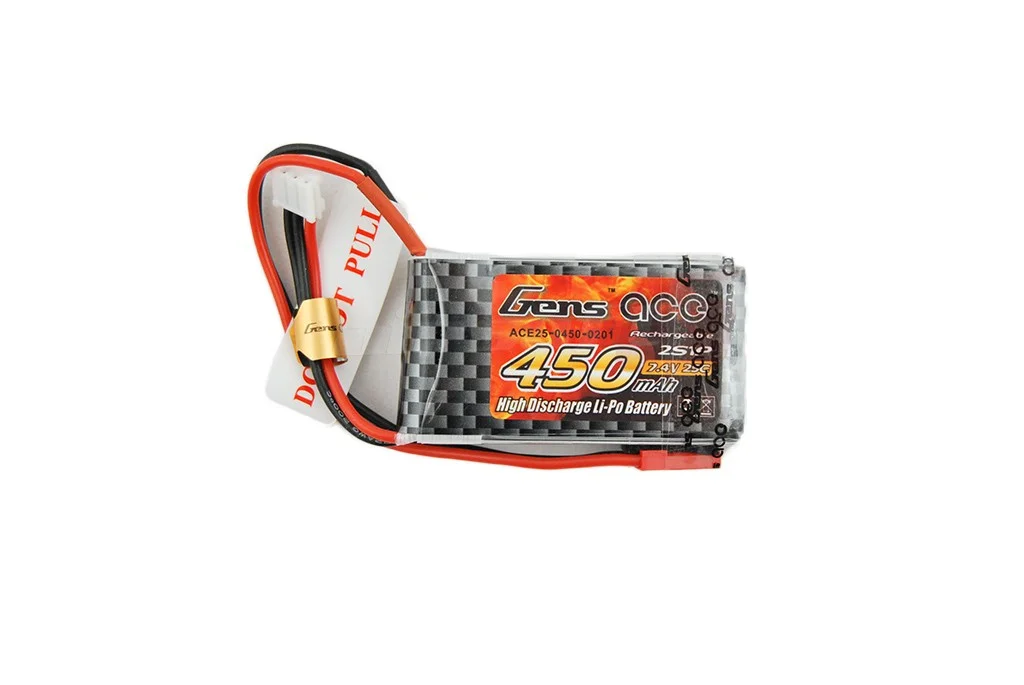

This LiPo battery consists of 2 cells. The small capacity of the battery allows for reduced overall dimensions, making it suitable for installation in compact battery compartments. The 25C discharge rate provides sufficient current supply, meeting the power needs of the replica.
The battery's insulation is well-made, and the connector wires are low-resistance quality cables.
Packaging
The batteries are individually packaged in protective film against mechanical shocks and a cardboard box. The package includes an adapter that allows the battery to connect to most chargers designed for LiPo batteries.
WARNING:
- Lithium Polymer (LiPo) batteries can be extremely dangerous.
- The user must take all precautions to prevent: fire, bodily injury, and property damage.
- In case of improper use, damage, or manufacturing defects, LiPo batteries can cause explosions, fire, smoke, and poisoning risks.
- By purchasing this type of battery, the user assumes responsibility for any risks associated with LiPo batteries.
- LiPo batteries are not toys and should not be left within reach of children as they can pose a real danger to their health.
- LiPo batteries should not be thrown into fire, placed in an oven or microwave as they may explode.
- LiPo batteries contain/may emit electrolytes, toxic vapors, and other harmful chemicals. Handle these batteries carefully and avoid any contact with skin, eyes, or other body parts. In case of contact, rinse thoroughly with water and contact a doctor immediately.
- Do not attempt to charge mechanically or chemically damaged batteries.
Actions Leading to Battery Damage
- Charging LiPo batteries with a charger that lacks balancing and automatic shut-off features.
- Connecting in series or parallel with another cell or battery, even if they appear similar.
- Exceeding the maximum and minimum operating voltages.
- A temperature drop or rise outside the allowable limits.
- Excessive charging current.
- Short-circuiting the battery terminals.
- Subjecting the battery to mechanical shocks such as dropping, hitting, bending, cutting, twisting, deforming, or puncturing.
- Contact with liquids.
- Improvising an improper charging setup.
- Using unsuitable, improvised charging cables.
General Information
- LiPo batteries are composed of cells.
- The parameters of this type of battery are: Voltage measured in Volts (V), Capacity measured in milliamp hours (mAh), and instantaneous discharge (C)
- Each LiPo battery has a power connector and a charging connector.
- The power connector is used to power the device.
- The charging connector is exclusively for charging the battery. (in some cases, charging is done through both the power and charging connectors)
- Charging the battery is done using the charging connector, and for some advanced chargers, the power connector must also be connected.
- LiPo batteries are charged with special chargers designed for LiPo batteries that have the function of balancing the voltage of each cell and automatic shut-off of charging.
- Each LiPo battery has a maximum charging rate of 1.05X its capacity, which must not be exceeded during charging.
- Each cell has a maximum voltage of 4.2V and a minimum voltage of 2.7V.
- During operation or charging, the battery temperature must not drop below 0'C or rise above 50'C.
- For long-term storage, the battery capacity should be between 15 and 25% of its maximum value.
Airsoft6 cannot guarantee that you have used correct operating methods and have adhered to the conditions for charging, discharging, or storing NiMH and NiCd batteries. For this reason, we reserve the right to refuse replacement under warranty for improperly used batteries (which violate the above instructions and warnings) and are not responsible for material damages, moral damages, or loss of life.
