GATE WARFET Mosfet Power

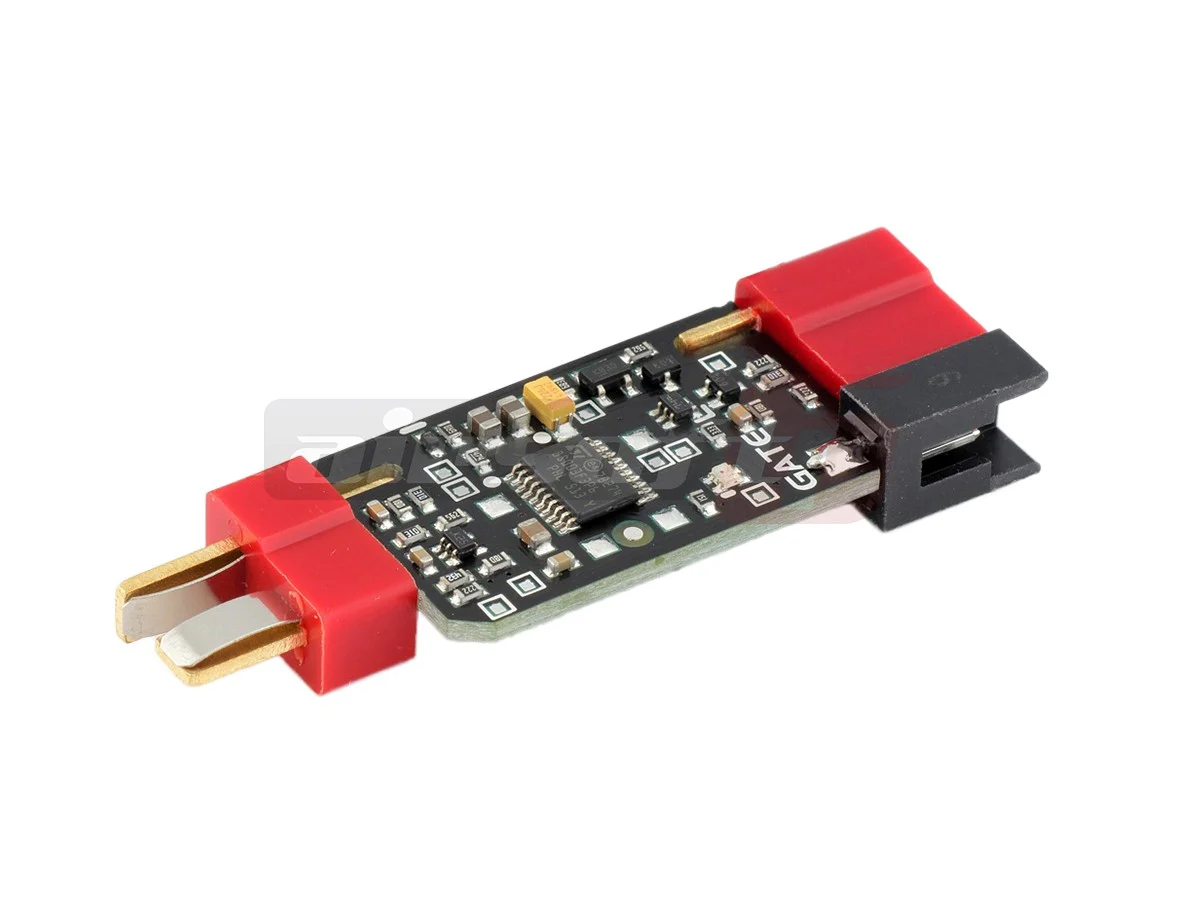

WARFET is an advanced control unit designed for AEG replicas. With its help, we can protect the replica's contacts and battery, and select one of the modes: semi, burst, or auto. Regardless of the battery used, the rate of fire can be easily adjusted according to preference. This control unit is programmable using a programming card.

Simple connection:

Here, the control unit is simply connected between the battery and the replica's connector. This mode allows for the protection of the contacts and the battery.

Advanced connection:

To achieve this connection, the electrical installation of the replica must be completely redone. Functions in this mode allow for a wide range of settings and options:

Pre-cocking: This function allows for the systematic tensioning of the spring, so that when the trigger is pulled, the response time is very short until the actual shot.

Burst: This function allows you to fire a specific number of BBs with a single trigger pull, from 1 to 5 BBs. This is an important aspect when using low-cap or mid-cap magazines.

Multiple firing modes:

• Safe + Semi + Auto
• Safe + Semi + Burst
• Safe + Burst + Auto

Rate of fire control: This function allows us to control the rate of fire of the replica regardless of the battery voltage used.

Quick trigger: This function allows that when we electronically lower the rate of fire, the first shot is still at maximum power, achieving an instant trigger response.

Battery consumption alarm: When the voltage of the battery drops to a minimum value, the replica will alert us to this by vibrating the motor.

Electronic safety: The device is equipped with electronic safety against overload or short circuit. When an anomaly in current consumption is detected, the control unit will cut off the power to the replica.

Active braking: This function allows us to improve the reliability of the replica by keeping the spring in an extended position and the gearbox relaxed.

Corrosion-resistant coating: This coating allows us to keep the control unit in proper working condition even in unfavorable weather conditions.

Self-test: With this function, we can determine if the control unit is at fault when the replica is not functioning correctly.

Included in the package:

• WARFET control unit
• Installation and usage kit

GATE WARFET can operate with a wide variety of battery types including NiMH, LiPo, and LiFe, with voltages ranging from 3.2V to 17V.

WARNING:

The installation of this mosfet must be performed by qualified personnel as there is a risk of damaging it or the components of the replica. Incorrect powering of the device will result in its burning out. Airsoft6 provides warranty service only for devices installed in its own service!

.
