ASG Advanced Mini Battery Charger

This multifunctional charger manufactured by ASG allows charging a wide variety of battery types used in airsoft: LiPo, LiFe, NiMh, NiCd. The technology behind this device is not extremely advanced, but it ensures that the batteries are kept in optimal working condition. The charger features charge detection for both LiPo/LiFe and NiMh/NiCd batteries.

The charger is powered through a special power adapter that can be connected to a 220V AC outlet or via clips to a 12V DC power source.

Operation

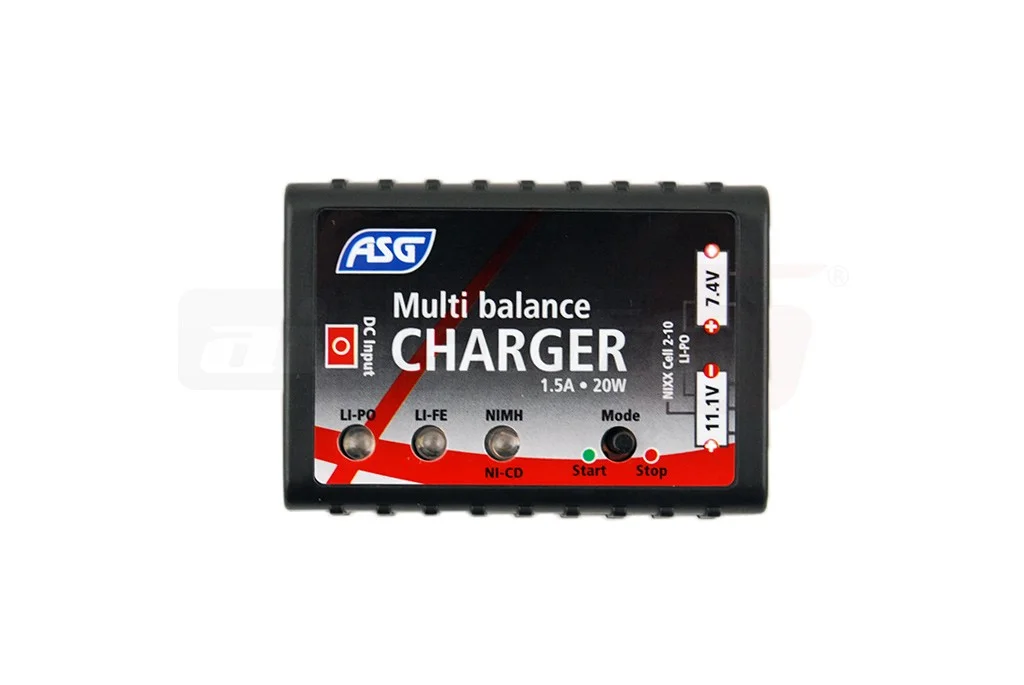

Once powered on, the device will indicate with a red light the type of battery it can charge, according to the 3 LEDs. Using the button, we can select the charging mode, start or stop the charging process. By holding the button down for an extended period, the device will switch between charging modes. Once the correct charging mode is selected and the battery is connected, press the button once briefly to start charging. If you wish to stop it, press the button again briefly.

Warning. Do not power the charger from unstable power sources and do not leave batteries connected to the charger without power, as this may cause damage. The correct charging procedure is to first power the charger and then connect the battery.

Package

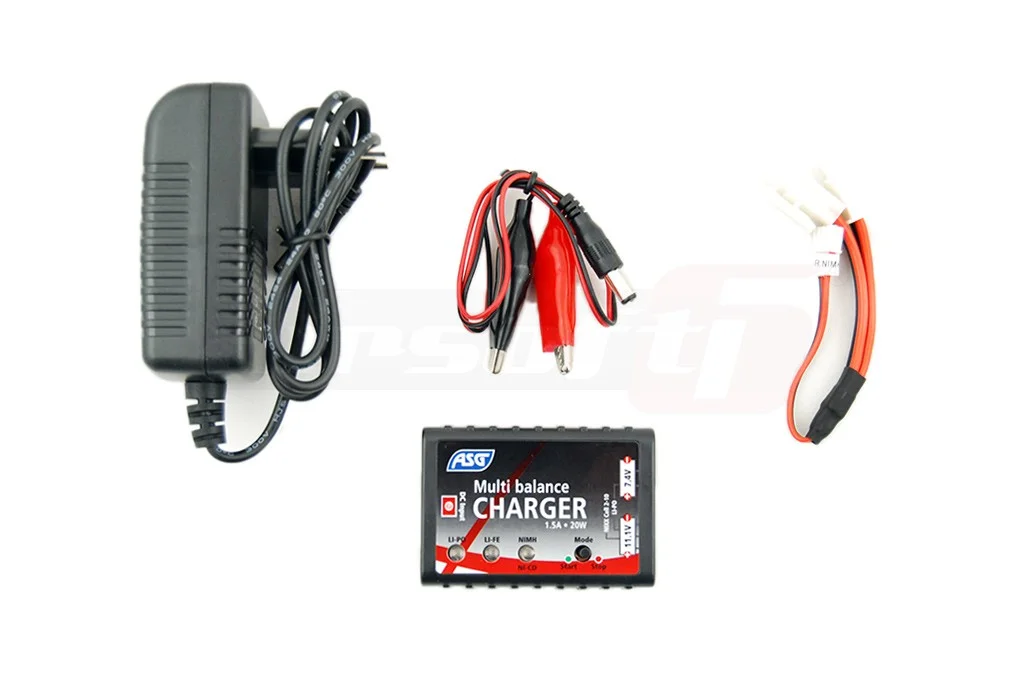

The package includes the charger, a 220V power adapter, a cable with clips for powering the charger from another power source, and a dual cable with mini and large Tamiya connectors. Be careful not to connect 2 batteries at the same time. This charger can charge only one battery at a time.
