A charger designed for small LiPo batteries with the capability to balance the battery cells. The charger features a charging indicator and automatic shut-off when charging is complete. Due to its compact size and special functions, this charger is an ideal choice for budget-conscious users.
Equipment Specifications
| Supported Connectors | 3S Balance Connector, 2S Balance Connector |
| Power Voltage | 220V AC |
| Supported Batteries | Li-Po |
| Charge Current | 0.5A |
Product Description

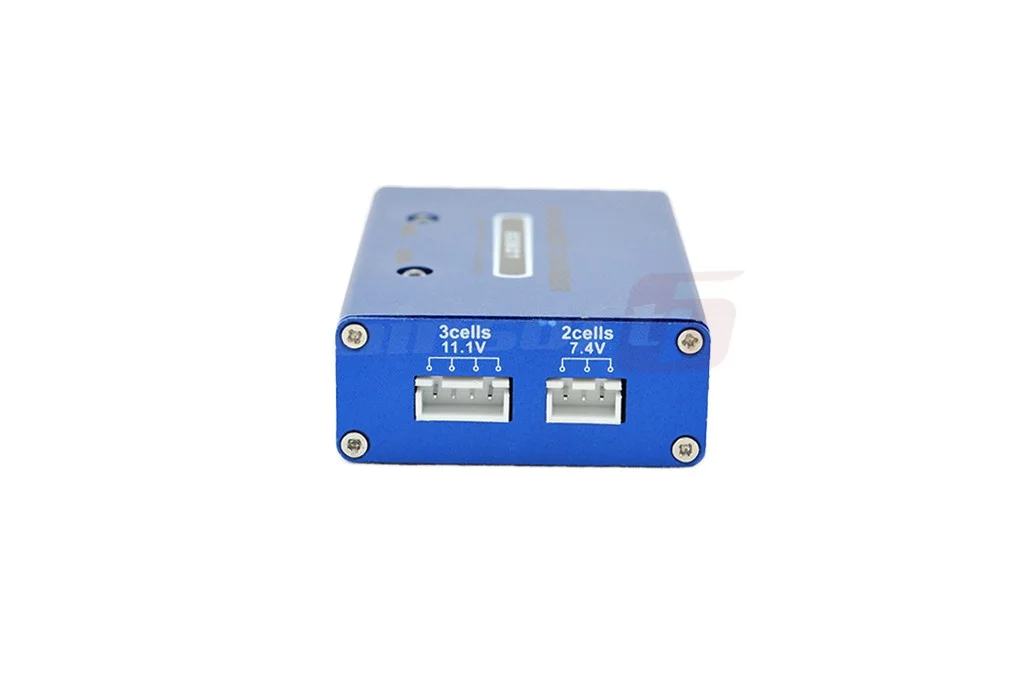

This charger is intended for charging LiPo batteries. It can charge both 2-cell and 3-cell batteries, meaning 7.4V and 11.1V. Charging will be done strictly through the battery's charging port, with no need to connect the power supply plug. The charger is equipped with 3 bi-color LEDs to check the charging status/charged state for each of the possible cells to be charged.
Operation

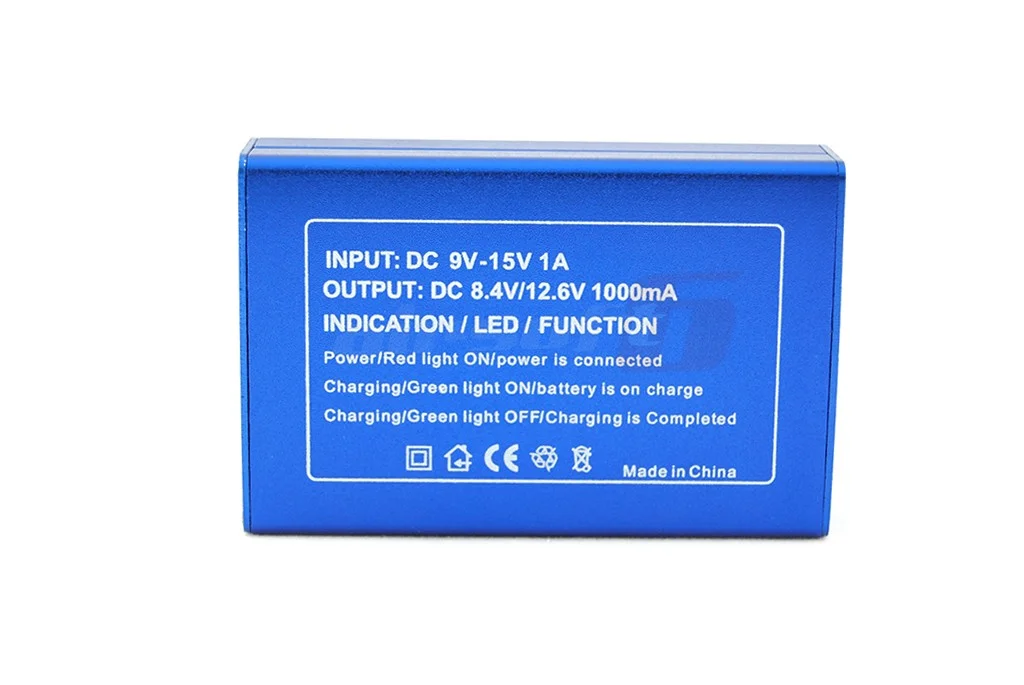

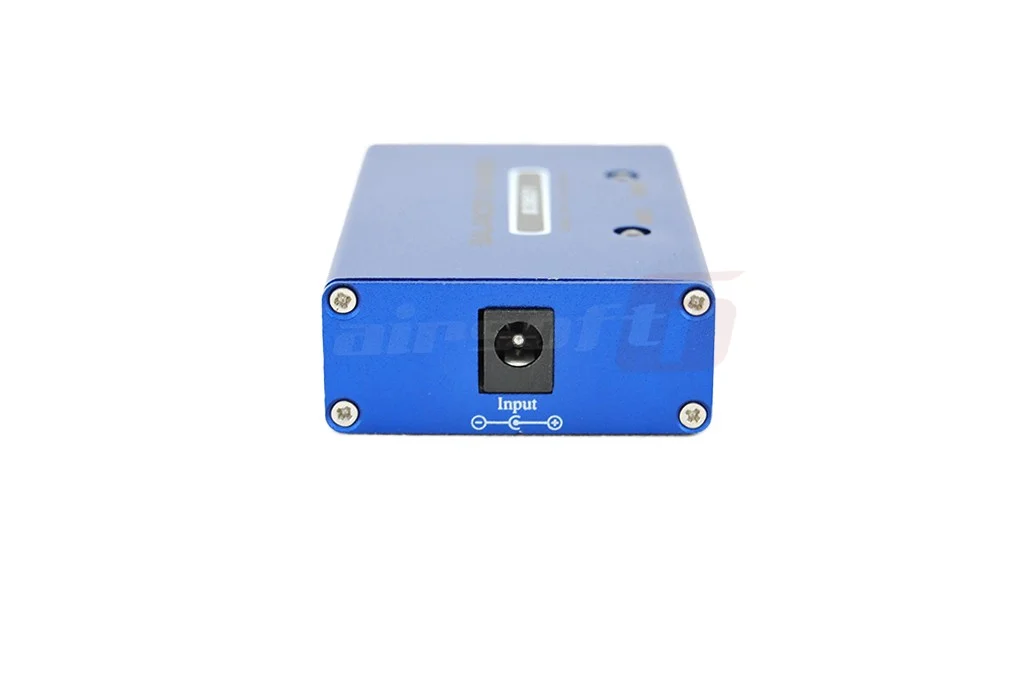

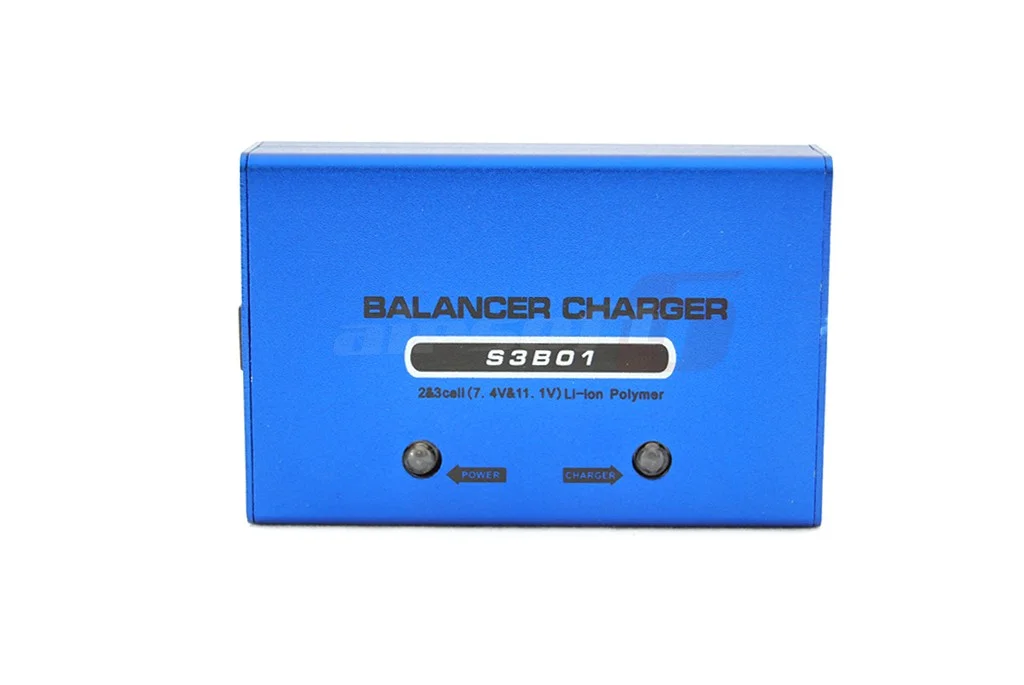

Connect the power supply to the charger using the special connector, then plug the power supply into the mains (220V AC). The charger is equipped with 2 bi-color LEDs. One LED indicates connection to the power supply, while the other shows the charging status. When the battery is charging, the LED is green; when charging is complete, it turns off.
Package

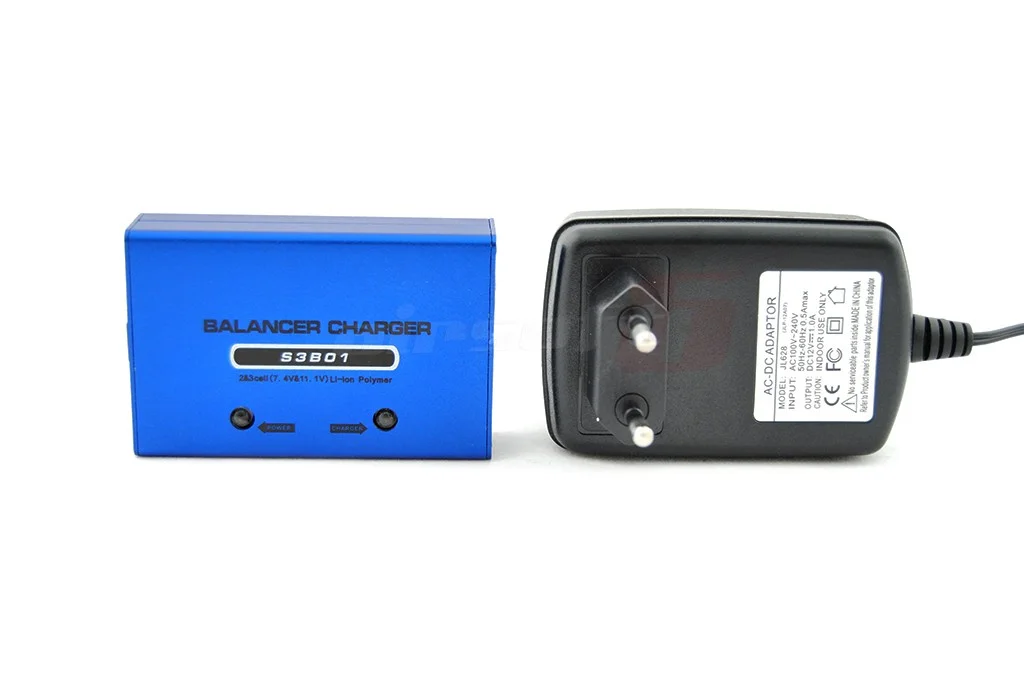

The package includes the balancing charger and a 12V power supply.
